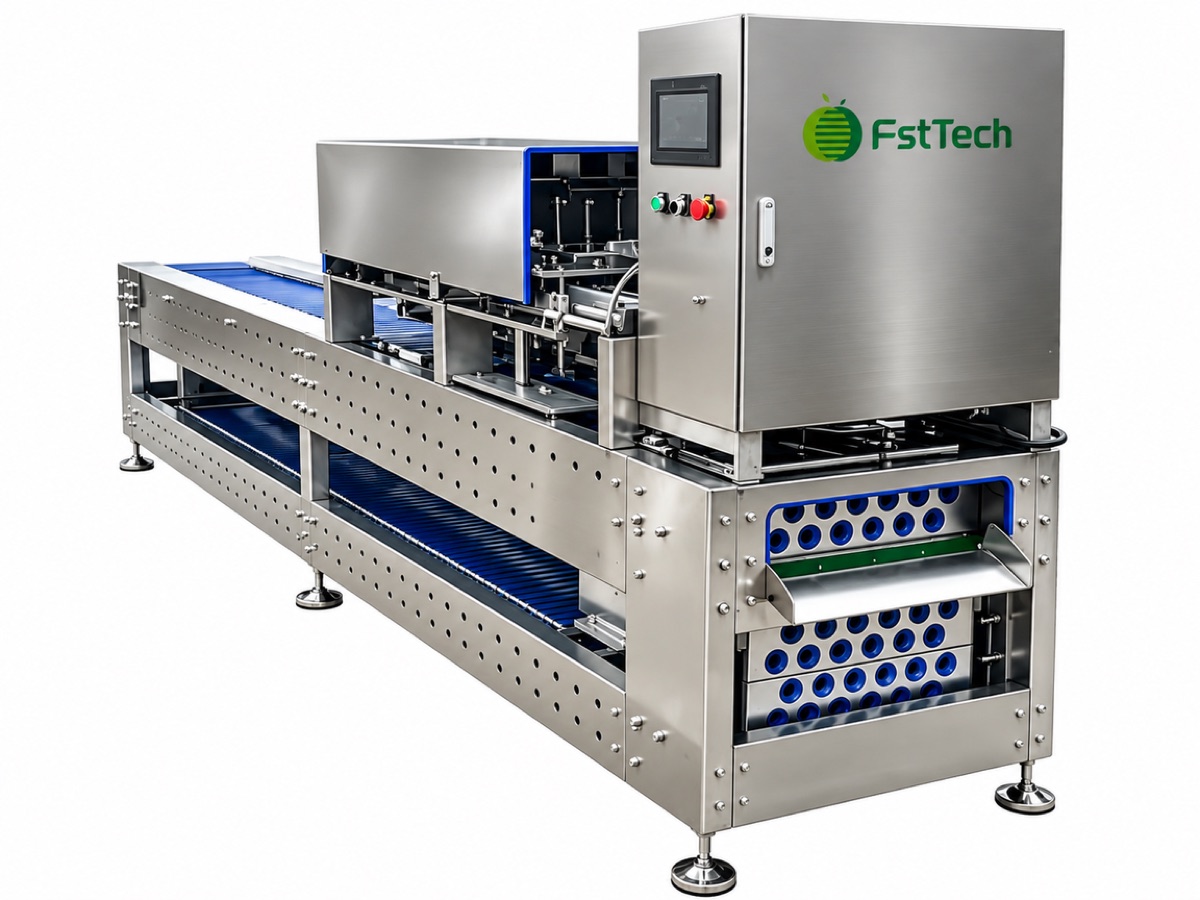

Platform Strawberry Destemming Machine
Industrial platform strawberry destemming (hulling) machines with 4-station and 6-station models — up to 540 pieces per minute for large-scale lines.
Configurations
Choose your model: the 4-station FSTP400 balances output and machine length; the 6-station FSTP600 provides the highest throughput in this product series.
- FSTP400 (4-station)
- FSTP600 (6-station)
Applications
- Industrial strawberry processing
- Freezing and jam production lines
- Canning and fruit ingredient preparation
Features
- Up to 360 / 540 pcs/minThe 4-station model balances output and machine length; the 6-station model targets the highest throughput in the series.
- Multi-station CNC operationCoordinated multi-station operation positions each fruit, controls the cutter and removes the calyx in sequence.
- Pneumatic dischargeProcessed strawberries discharge through a pneumatic system for continuous flow.
- Food-contact materials304 stainless steel, silicone and PE components for food processing environments.
- Custom line connectionOptions to connect with upstream and downstream line equipment.
Technical Specifications
- Model
- FSTP400 (4-station) / FSTP600 (6-station)
- Throughput
- Up to 360 / 540 pcs/min
- Dimensions
- 3000 × 700 × 1500 mm / 4600 × 700 × 1500 mm
- Voltage
- 220V / 380V available
- Total power
- 1.5 + 1 + 0.1 kW
- Loading method
- Manual
- Air supply
- Required
- Cleaning method
- Wash with water; avoid direct spraying on the control panel
- 4-station weight
- Approx. 320 kg (confirm shipping data before order)

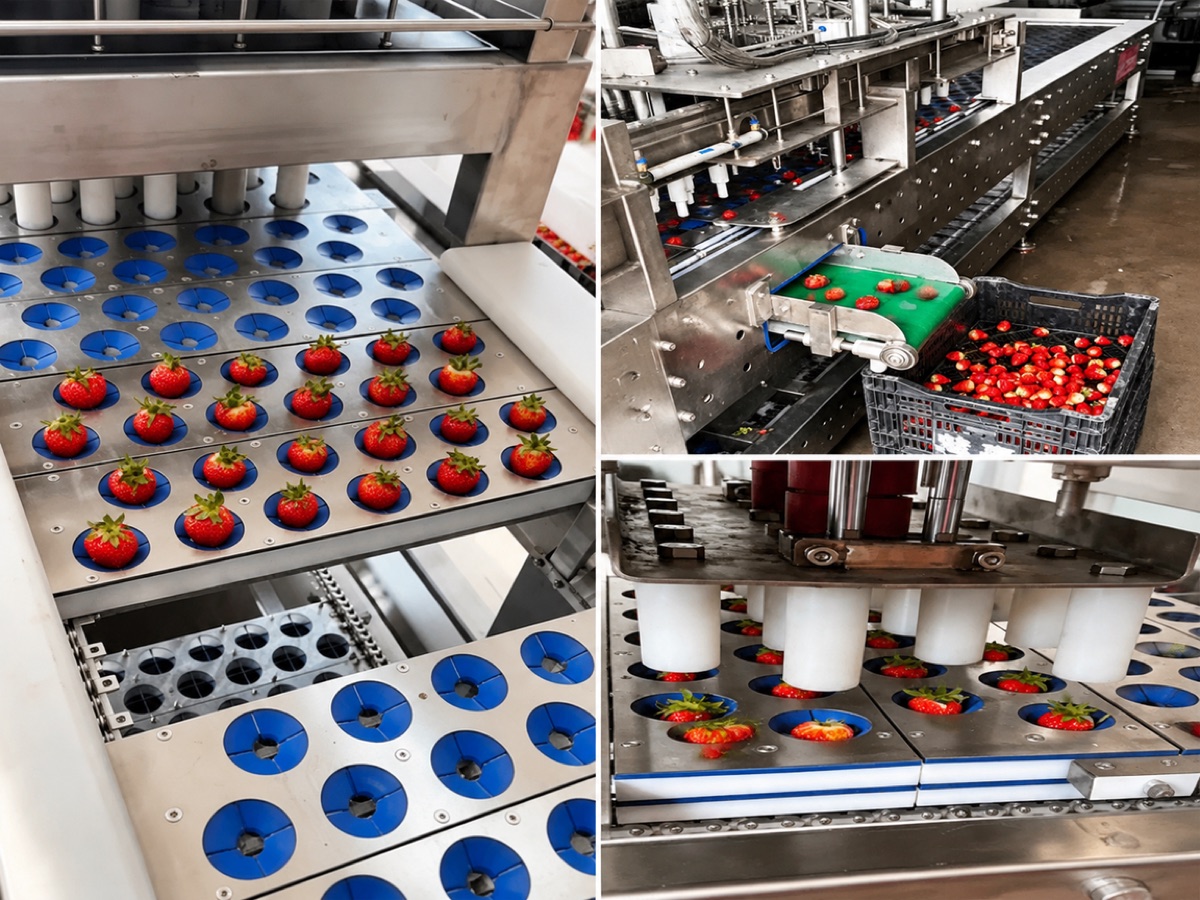

Working Process
Manual loading
Operators load strawberries into the holders manually.
Multi-station sequence
The machine positions each fruit, controls the cutter movement and removes the calyx in a coordinated multi-station sequence.
Pneumatic discharge
Processed strawberries discharge through the pneumatic system to the next stage.
Working Video
FAQ
4-station or 6-station — which should I choose?
The 4-station FSTP400 (up to 360 pcs/min) balances output and length; the 6-station FSTP600 (up to 540 pcs/min) is for the highest throughput. Share your target volume for a recommendation.
What utilities does it need?
220V or 380V power plus a compressed-air supply for the pneumatic discharge. Cleaning is by water wash, avoiding direct spraying on the control panel.
