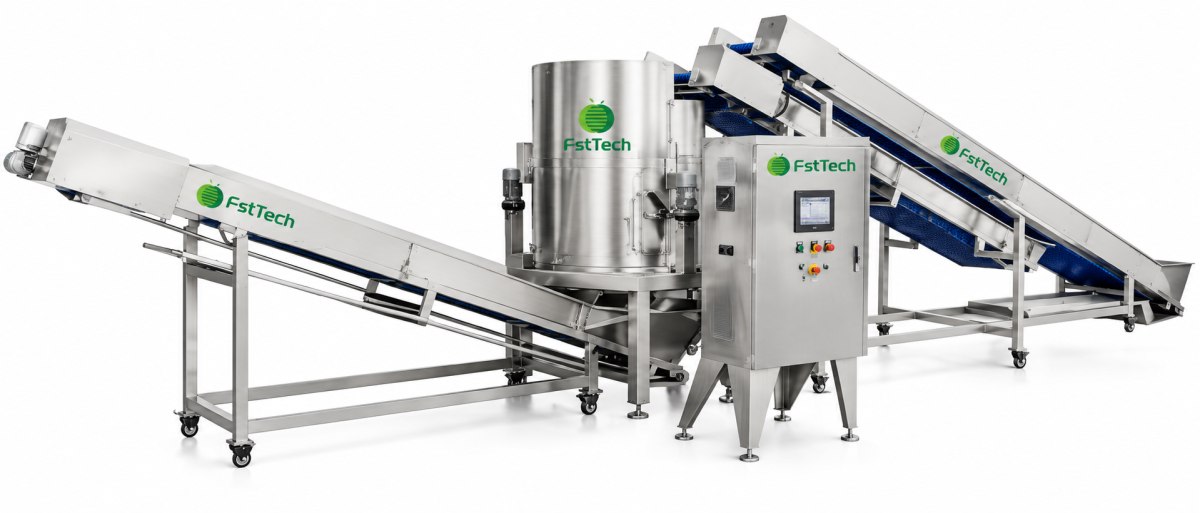

Centrifugal Dewatering Machine

A continuous centrifugal dewatering machine that removes surface moisture from washed produce in seconds, with variable speed control and automatic feed/discharge conveyors.

Applications

Fresh-cut salad and shredded vegetables
French fry production (before frying)
Ready-to-eat meal preparation
Industrial catering and food service

Features

High-speed centrifugal actionRemoves surface water quickly and efficiently, reducing drying time and improving downstream product quality.
Variable speed controlA frequency inverter sets both dewatering time and rotating speed (0–1440 rpm) to suit each product type.
Continuous operationAutomatic feeding and discharging via dual conveyor belts keep the flow uninterrupted for high-volume processing.
Stable and safeSmooth running with minimal vibration; all contact parts are food-grade stainless steel.
Gentle on productUp to 820G of centrifugal acceleration separates water while remaining gentle enough for delicate leafy vegetables.

Technical Specifications

Main unit dimensions (L×W×H): 1590 × 1170 × 2030 mm
Conveyor belt dimensions (L×W×H): 3510 × 1226 × 2160 mm (dual belts)
Processing capacity: 500–800 kg/h
Rotating speed: 0–1440 rpm (variable via frequency inverter)
Motor power: 5.5 kW
Voltage: 380V / 3-phase
Material: Stainless steel (food grade)
Control: Frequency inverter with digital display

Working Process

Automatic feeding
Raw materials enter continuously via the upper conveyor belt, with precise timing and quantity controls for a consistent feed rate.
Centrifugal dehydration

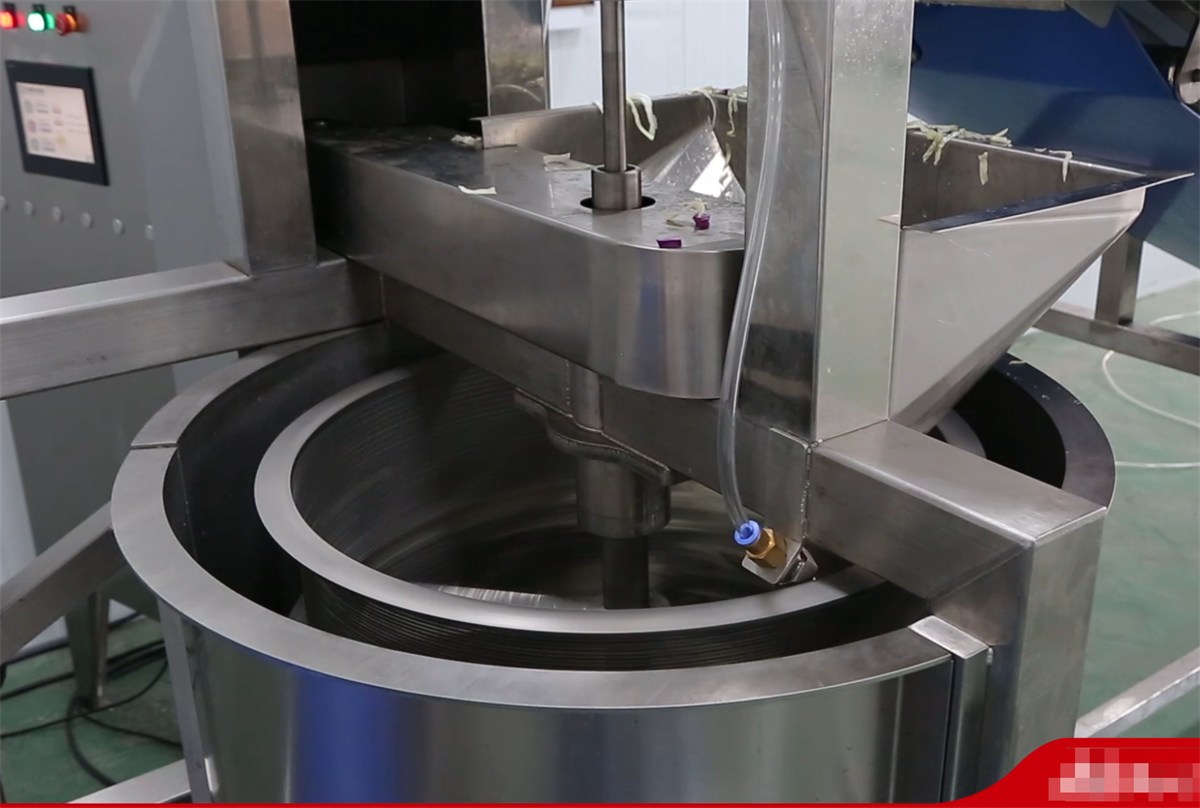

The drum spins at high speed, generating up to 820G of centrifugal acceleration that separates water through the perforated walls while retaining the solids.
Automated discharge
Dewatered product transitions to the lower conveyor belt, transferring nonstop to packaging, frying, freezing or mixing.

See it inside a complete line

This machine is part of configured processing lines. Review the solution pages for the full process flow.

View the related processing line

Working Video

Project References

Projects built with this machine — country, capacity and configuration only.

Green bean processing line for a fresh-cut processor in the United States

Green Bean Washing and Cutting Line for a US Fresh-Cut Processor

Green Beans · United States · 500–1,000 kg/h

Fresh-cut processor

FAQ

How dry will the product be?

Speed and cycle time are adjustable (0–1440 rpm) to match the product's tenderness and moisture content, so results are tuned per material and confirmed with your produce.

Is it suitable for soft leafy products?

Yes — the adjustable speed keeps the action gentle enough to avoid bruising or leaf breakage, even for delicate leafy vegetables.

Can it connect to my existing line?

The inlet and outlet conveyors link directly to upstream washing and downstream packaging, frying or freezing stages.
