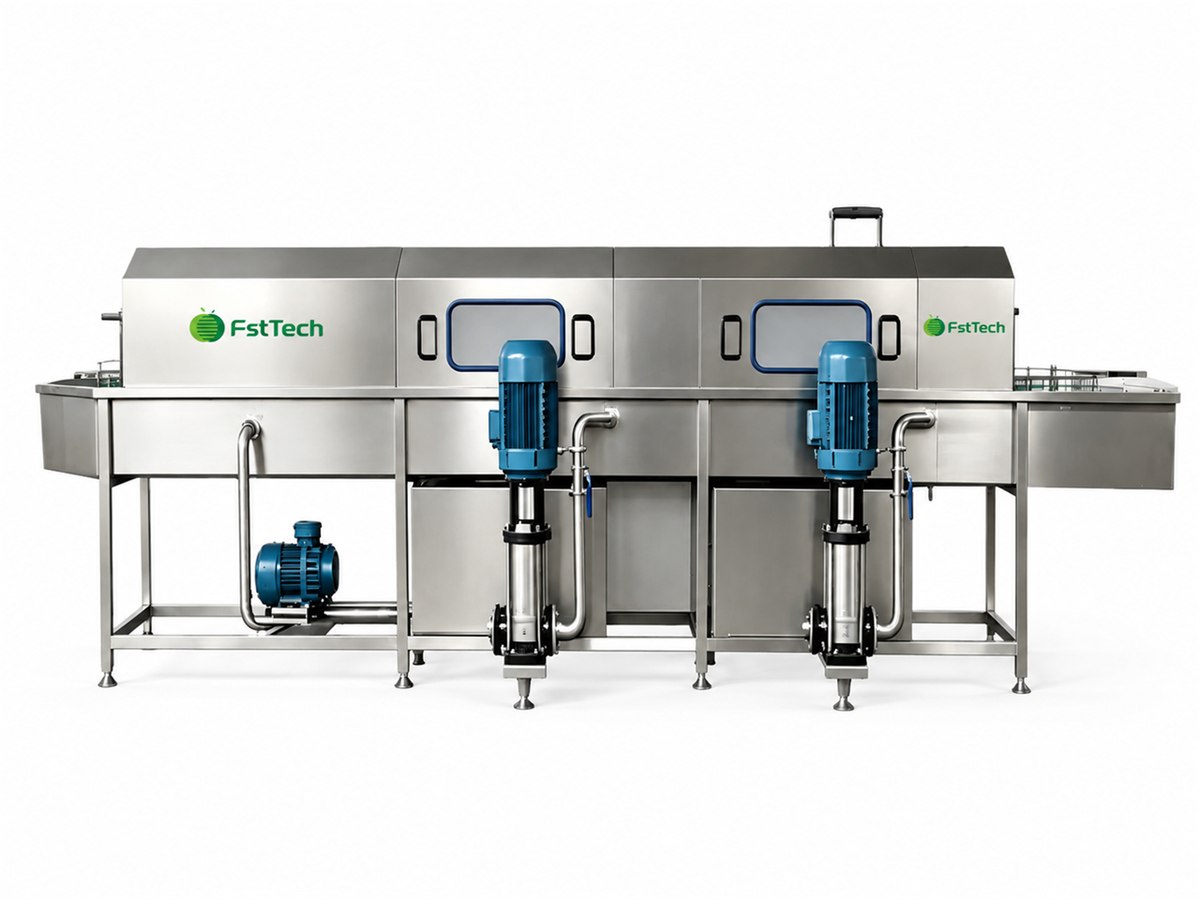

Crate Washing Machine
A steam-heated turnover crate washing and dewatering machine — 3 high-pressure spray stages, multi-air-knife dewatering, 304 stainless steel, approx. 200 crates/hour.
Applications
- Plastic crate and container washing
- Food processing and central kitchens
- Cold-chain logistics crate turnover
- Hygiene-sensitive washing environments
Features
- Approx. 200 crates/hourContinuous washing and dewatering for plastic crates, baskets and containers.
- 3-stage spray washingThree high-pressure spray stages with steam heating target loose debris, grease and stubborn soil.
- Air-knife dewateringMultiple air knives remove about 70% of surface water; optional drying module achieves over 95% dryness.
- 304 stainless steelTank, water tank, hood and frame in 304 stainless steel for hygiene and durability.
Technical Specifications
- Capacity
- Approx. 200 crates/hour
- Washing sections
- 3 high-pressure spray stages, steam heated
- Dewatering
- Multi-air-knife, removes ~70% surface water
- Pump power
- 5.5 + 7.5 + 3.0 kW, 0.4–1.1 MPa
- Conveyor
- 1.5 kW, variable frequency speed control
- Total power
- 27.5 kW (steam heating)
- Frame & tank
- 304 stainless steel
- Dimensions
- Approx. 9,000 × 1,800 × 2,150 mm
Working Process
Infeed
Crates are loaded onto the conveyor.

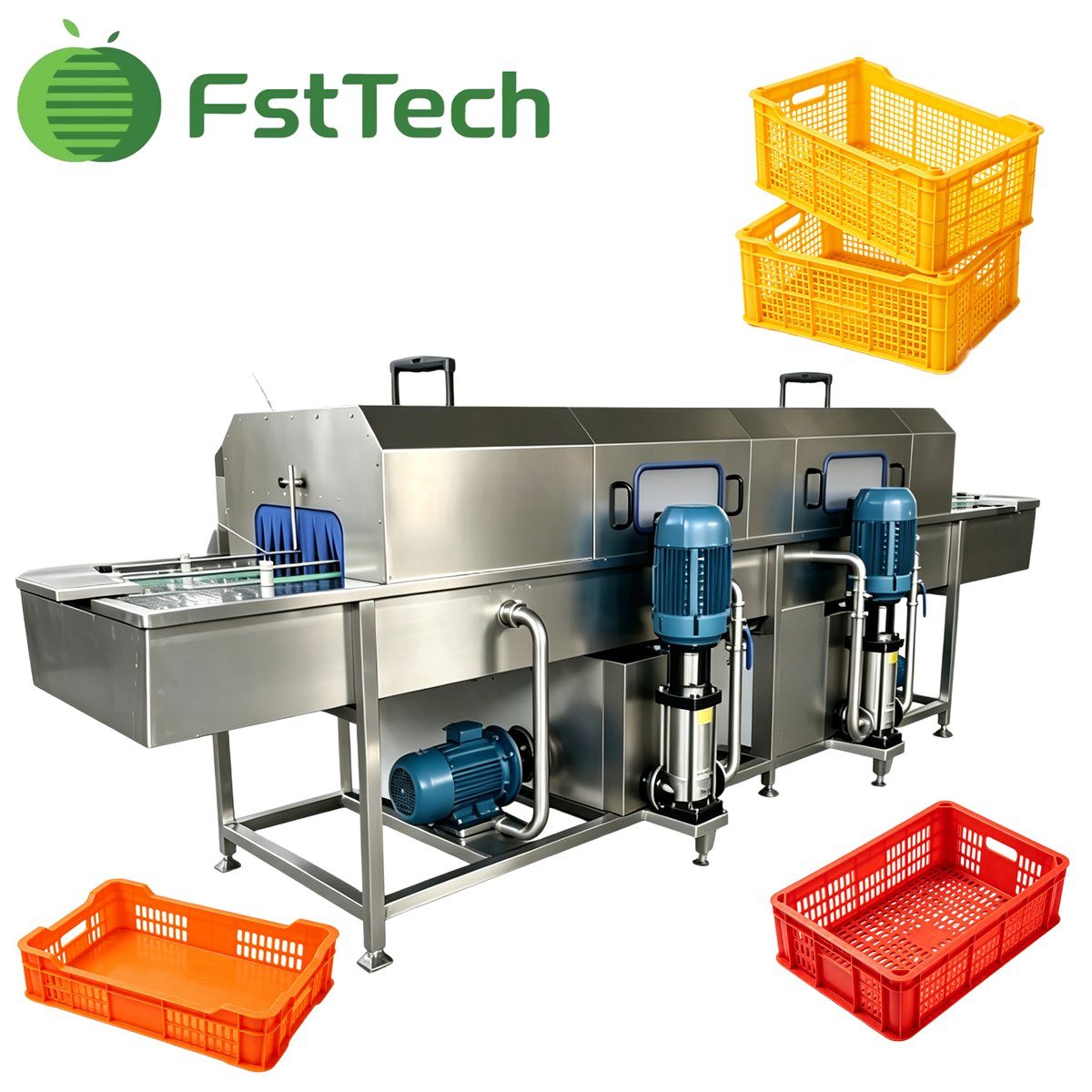

3-stage spray washing
High-pressure heated water removes loose debris, grease and stubborn soil across three progressive stages.
Air-knife dewatering
Multiple air knives blow off surface water, removing about 70% of residual moisture.
Outfeed
Crates exit ready for reuse, air drying or optional further drying.
Working Video
FAQ
What crate sizes does it handle?
Reference crate size is 600 × 400 × 320 mm; other sizes are customisable.
How dry are the crates after washing?
Air knives remove about 70% of surface water; an optional drying module can achieve over 95% dryness.
What is the capacity?
Approximately 200 crates per hour, depending on crate size, soil level and conveyor speed.
