Lychee pitting machinePitting equipment
Lychee Pitting Machine

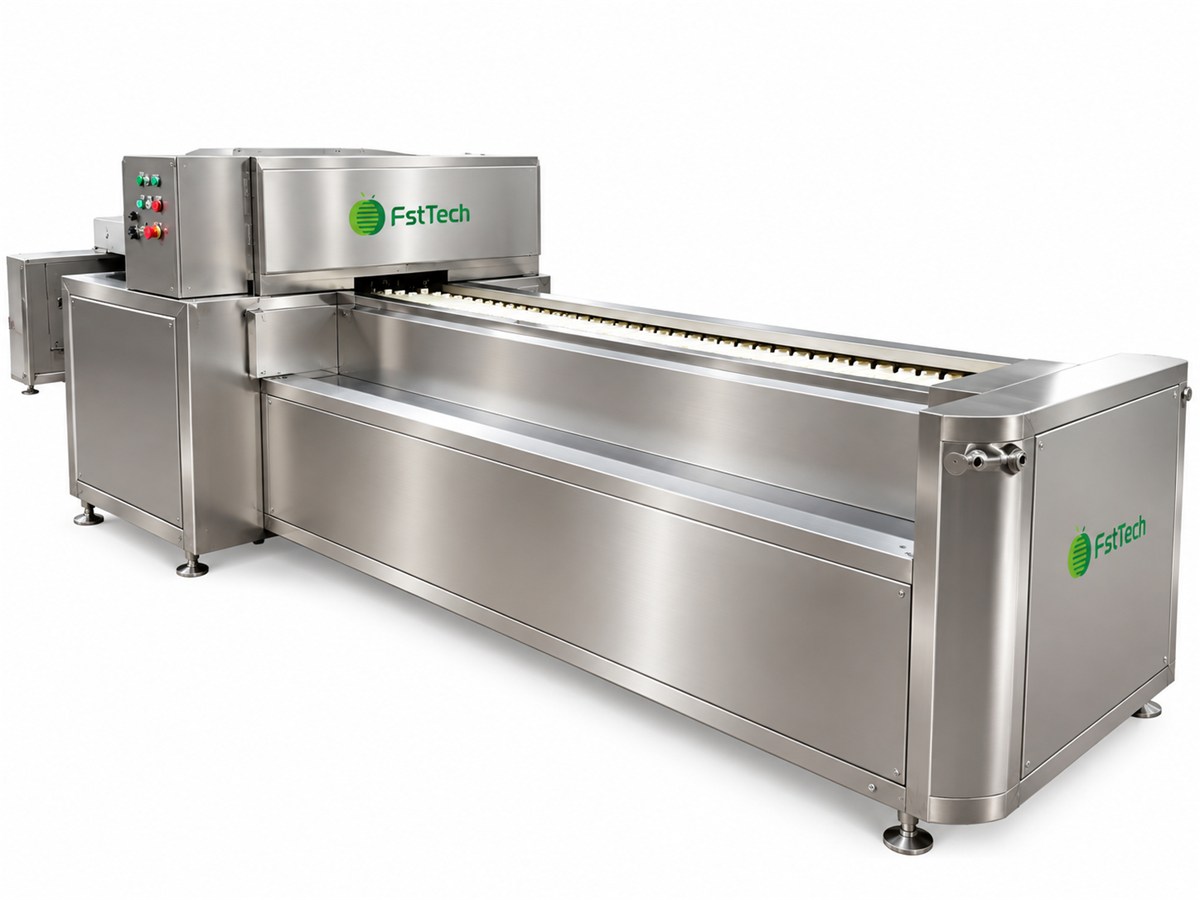

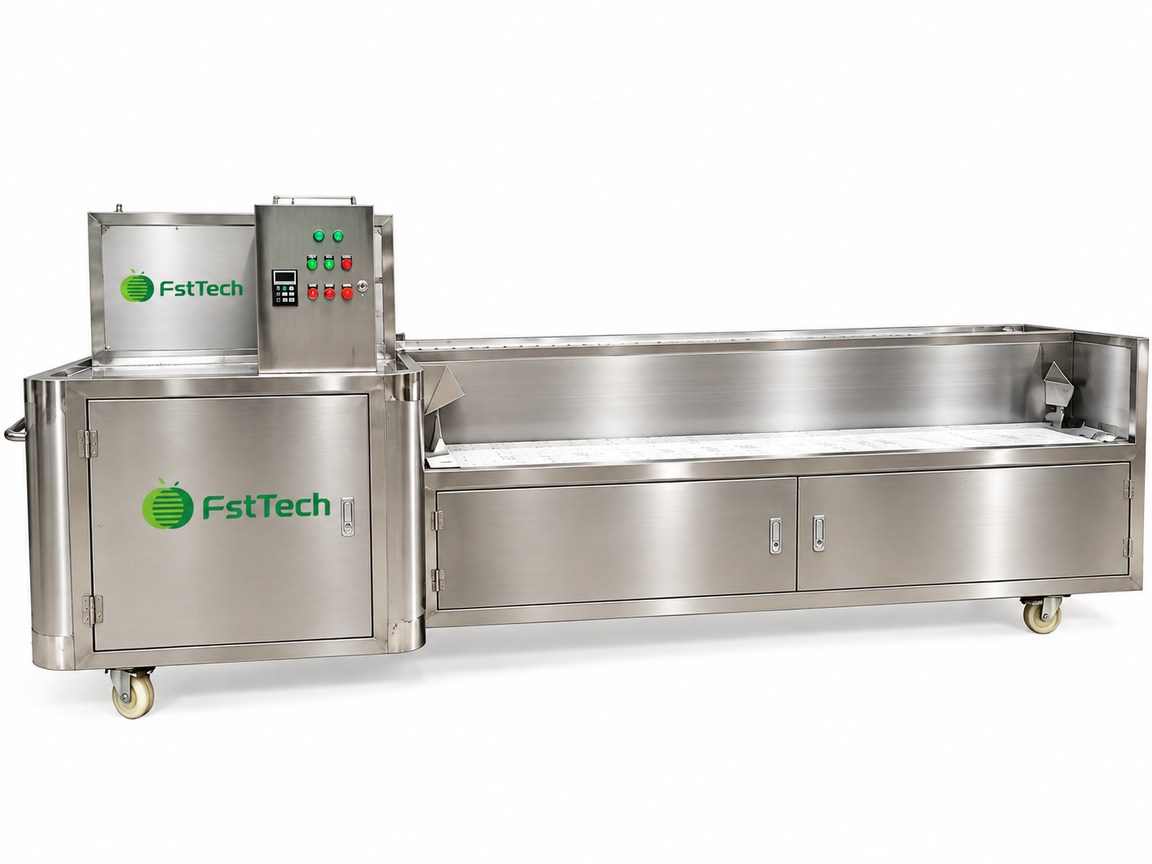

A roller-cup lychee and longan pitting machine: each fruit is held in a cup while a pitting punch pushes the stone out — gentle mechanical pitting for canning, juicing and dried-fruit lines.
Applications
- Lychee and longan processing
- Canned fruit and juice production
- Dried and preserved fruit preparation
- After destemming or peeling stages
Features
- Roller-cup pittingFruit settles into individual roller cups that carry and hold it in the pitting position — no free-rolling, no missed stones.
- Punch-type stone removalA pitting punch pushes the stone out with minimal flesh loss, keeping the pitted fruit presentable for canning.
- Continuous flowInfeed and discharge conveyors run the machine continuously alongside upstream destemming or peeling equipment.
- Stainless constructionStainless steel frame with a centralized control cabinet, built for washdown-ready food processing.
Technical Specifications
- Pitting method
- Roller-cup holding with punch-type stone removal
- Products
- Lychee, longan and similar small tropical fruits
- Typical placement
- After destemming or peeling, before canning, juicing or drying
- Detailed specifications
- Provided with the offer for the confirmed configuration
Configuration-specific specifications are confirmed during the inquiry stage.
Working Process
Feed
Destemmed or peeled fruit feeds into the roller cups in a single layer.
Align and hold
Each fruit settles into a cup that carries it to the pitting station and holds it in position.
Punch the stone
The pitting punch pushes the stone out of the fruit with minimal flesh loss.
Separate and discharge
Stones drop to the waste side while pitted fruit continues to canning, juicing or drying.
Working Video
Project References
Projects built with this machine — country, capacity and configuration only.
FAQ
Does it pit longans too?
Yes — lychees and longans share a similar stone structure, so the same machine handles both small tropical fruits.
Where does it sit in the line?
Typically after destemming or peeling; pitted fruit continues to canning, juicing or drying stages.
What fruit sizes can it handle?
Cup and punch tooling is matched to your fruit size range during configuration — share your fruit dimensions when inquiring.
