Dates pitting machinePitting equipment

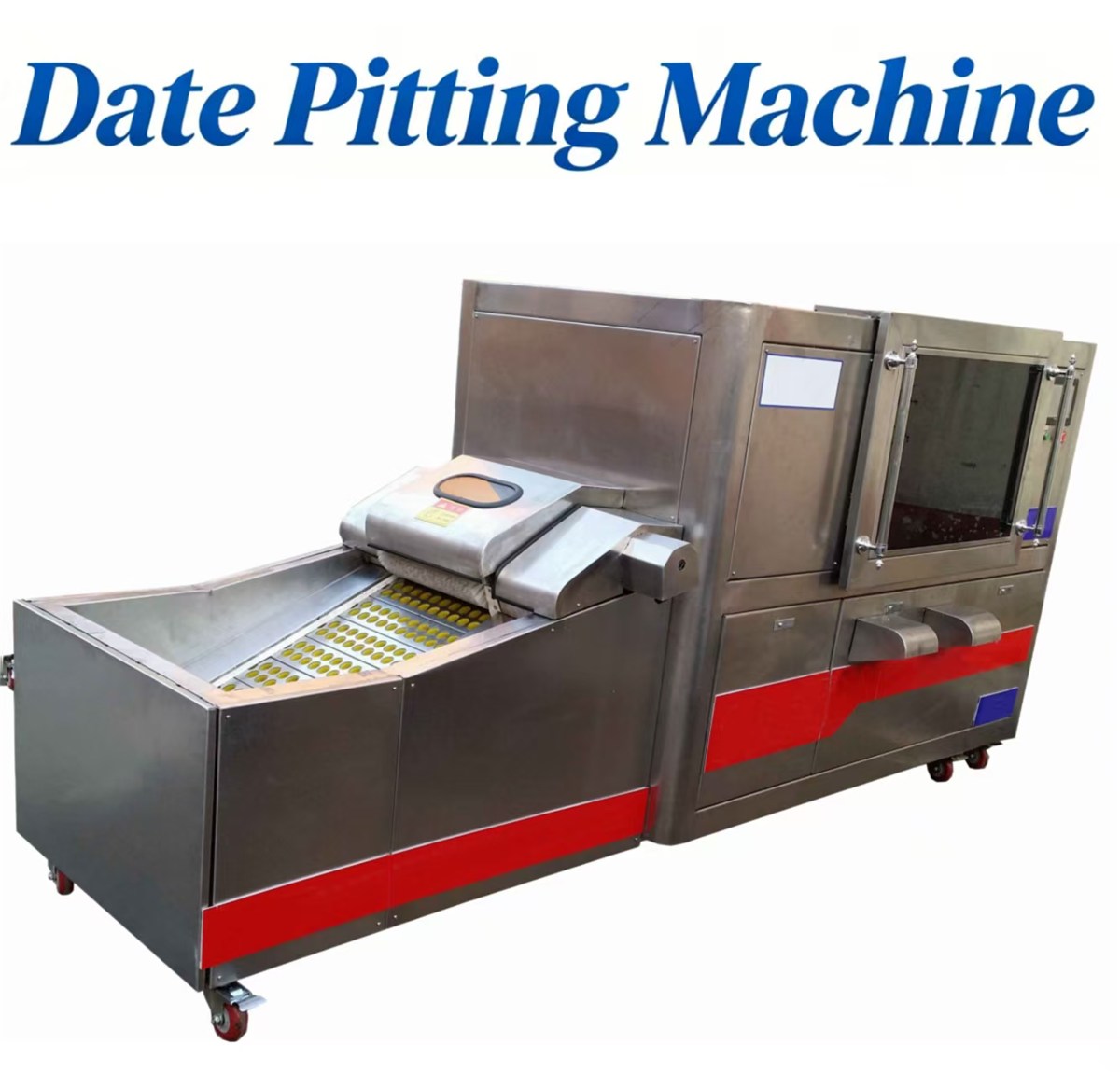

Dates Pitting Machine
A fully automatic stone-fruit pitting machine for dates, jujubes, cherries and olives — 20-needle pitting at up to 1,200 fruits per minute with a 99.94% pitting rate, plus optional scoring, slicing and nut filling.
Applications
- Dates (Medjool, Deglet Noor), jujubes, cherries and olives
- Dried fruit and preserved fruit production
- Date-stuffed nut products (walnut, almond filling)
- Deep processing of stone fruits 12–40 mm
Features
- 99.94% pitting rate, intact fleshPrecise needle pitting with flexible polyurethane mold sleeves removes the pit while the fruit stays whole — essential for premium dried fruits, preserves and filling products.
- Up to 1,200 fruits/minThree speed levels — 300, 800 and 1,200 fruits per minute — adjusted on the PLC touchscreen to match the fruit and downstream line.
- One machine, four functionsBy changing molds and cutting tools the same machine pits, scores, slices and fills nuts — replacing several single-function machines.
- Gentle PU-sleeve handlingImported polyurethane sleeves line every mold cavity, holding delicate fruit such as cherries and fresh jujubes firmly without crushing.
- Automatic sorting, three outletsA vibrating sorter rejects undersized fruit; finished fruit, pits and unpitted fruit discharge through separate outlets.
- Food-grade and jam-proofSUS304 frame with 2.0 mm plates; the PLC faults and auto-reverses to clear blockages, and a hinged window lets operators watch every station.
Technical Specifications
- Capacity
- 300 / 800 / 1,200 fruits/min (three speeds)
- Pitting rate
- 99.94%
- Fruit diameter
- φ12–40 mm (15–30 mm recommended)
- Suitable fruits
- Dates, jujubes, cherries, olives and similar stone fruits
- Pitting needles
- 20 food-grade stainless steel
- Control system
- PLC touchscreen, fault alarm, auto-reverse jam clearing
- Mold sleeve
- Imported polyurethane (PU)
- Drive
- Indexing box for high-precision positioning
- Material
- SUS304 stainless steel, 2.0 mm plates
- Total power
- 2.2 kW main + 60 W brush + 2 × 40 W conveyors
- Voltage
- 220V / 380V (optional)
- Dimensions (L×W×H)
- 3030 × 1000 × 1470 mm
- Machine weight
- 830 kg
Working Process
Gravity feed
Fruit falls into the mold cavities from the sloped conveyor; a brush returns any unseated fruit for a second attempt so every position is filled.

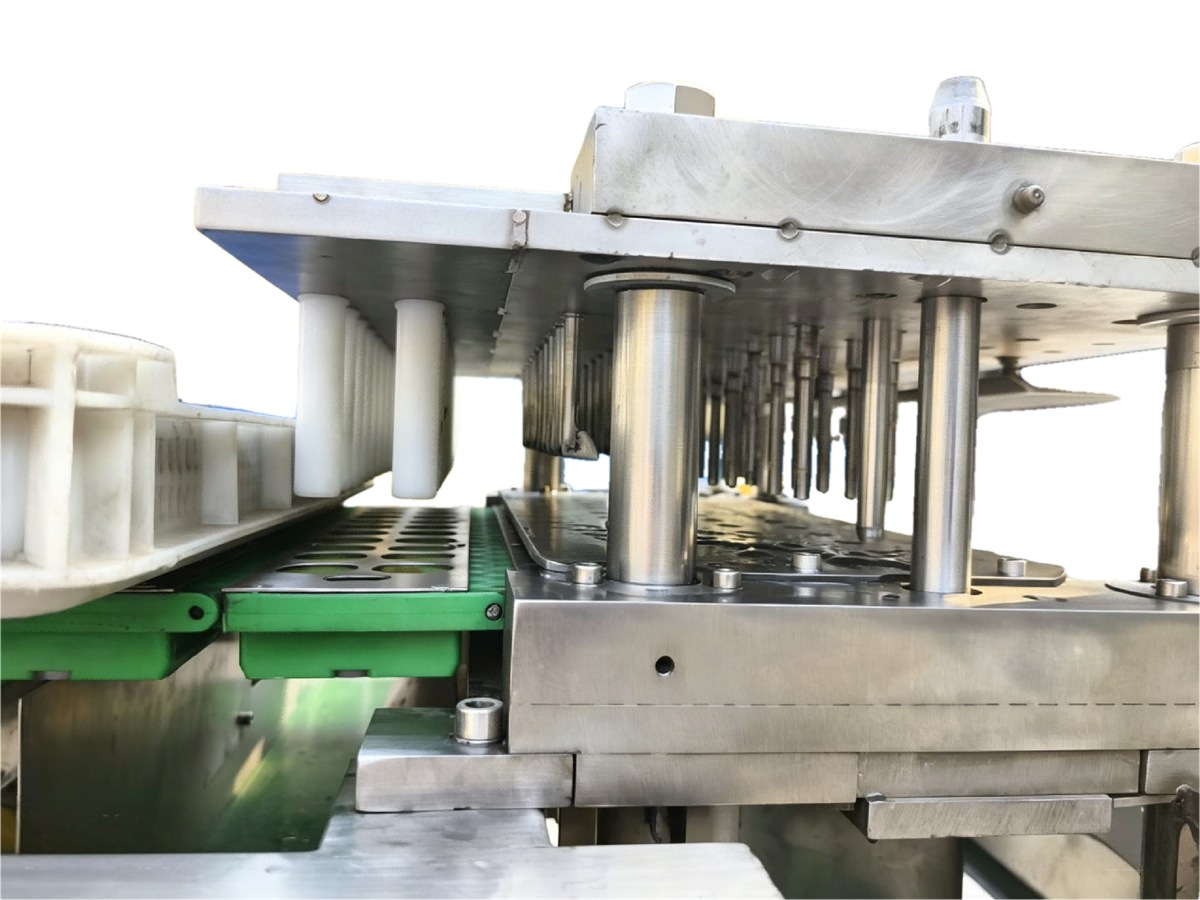

Flatten and pit
Each fruit is pressed flat for uniform orientation, then 20 stainless needles punch down and remove the pit — the heart of the 99.94% pitting rate.
Score or fill (optional)
Cutting blades open the pitted cavity for stuffing with walnuts or almonds — date-stuffed nut products in the same pass.
Eject and separate
Finished fruit is ejected onto the discharge conveyor while pits and unpitted fruit leave through separate outlets; a vibrating sorter rejects undersized fruit.
Working Video
FAQ
Which fruits can it pit?
Dates (Medjool, Deglet Noor) at 15–30 mm, winter and red jujubes, cherries and olives — any stone fruit from 12 to 40 mm. Mold hole sizes are customized to your fruit.
Can it do more than pitting?
Yes — by changing molds and cutting tools the machine scores (for sugar absorption or stuffing), slices (for drying or freezing) and fills nuts such as walnuts and almonds.
What happens to undersized or unpitted fruit?
A vibrating sorter removes undersized fruit before processing, and three separate outlets keep finished fruit, pits and unpitted fruit from mixing.
What if the machine jams?
The PLC detects the blockage and automatically reverses to clear it; a hinged observation window makes checks and adjustments easy.
