Top and Bottom Labeling Machine
A double-sided labeler with two applicator heads facing each other — products pass once and both the top and bottom surfaces carry a label, at 20–60 pcs/min with ±1 mm accuracy.
Applications
- Boxes, lids and trays needing labels on both sides
- Products 25–300 mm long, 20–200 mm wide, 10–90 mm high
- Roll-fed labels 25–160 × 15–130 mm on both heads
- Double-sided labeling on packing lines
Features
- Both sides in one passTop and bottom applicator heads face each other across the conveyor — the product leaves the machine labeled on both surfaces, no second pass.
- 20–60 pcs/min, ±1 mmDouble-sided labeling at line speed with ±1 mm placement accuracy on both labels.
- Roll-fed on both headsEach head runs its own label roll — labels 25–160 mm long and 15–130 mm wide from roll stock.
- Wide product windowHandles products from 25 × 20 × 10 mm up to 300 × 200 × 90 mm — small lids to full-size boxes.
- Matched conveyor widthsStandard 200 mm conveyor with a 300 mm option to match the product and the upstream line.
Technical Specifications
- Labeling speed
- 20–60 pcs/min
- Labeling accuracy
- ±1 mm
- Label size
- 25–160 mm × 15–130 mm, roll-fed
- Product size
- 25–300 × 20–200 × 10–90 mm
- Applicator heads
- Top + bottom, facing pair
- Conveyor width
- 200 mm (300 mm optional)
Working Process
Feed
Products enter on the conveyor, centered between the top and bottom applicator heads.
Detect
A sensor confirms product position and triggers both label rolls at the same moment.
Apply both sides
The facing heads press a label onto the top and bottom surfaces in the same pass — placement holds to ±1 mm.
Discharge
Double-labeled products continue to collection or the next station of the packing line.

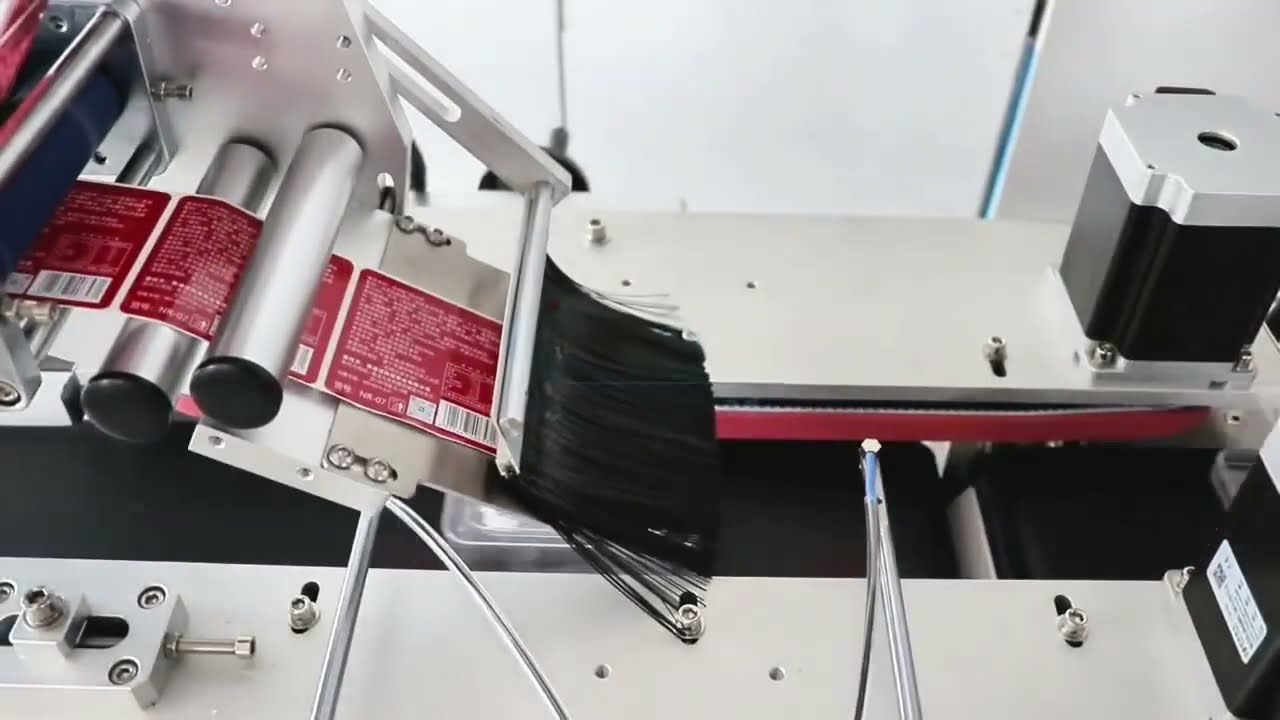

Working Video
FAQ
How is it different from a single-side labeler?
Two applicator heads face each other across the conveyor, so the top and bottom surfaces are labeled simultaneously in one pass — where a flat-surface labeler covers one side only.
What label and product sizes fit?
Roll labels 25–160 mm long and 15–130 mm wide on both heads; products from 25 × 20 × 10 mm up to 300 × 200 × 90 mm pass through in one pass.
How fast is it?
20–60 pcs/min depending on product size, with ±1 mm placement accuracy on both the top and bottom labels.
