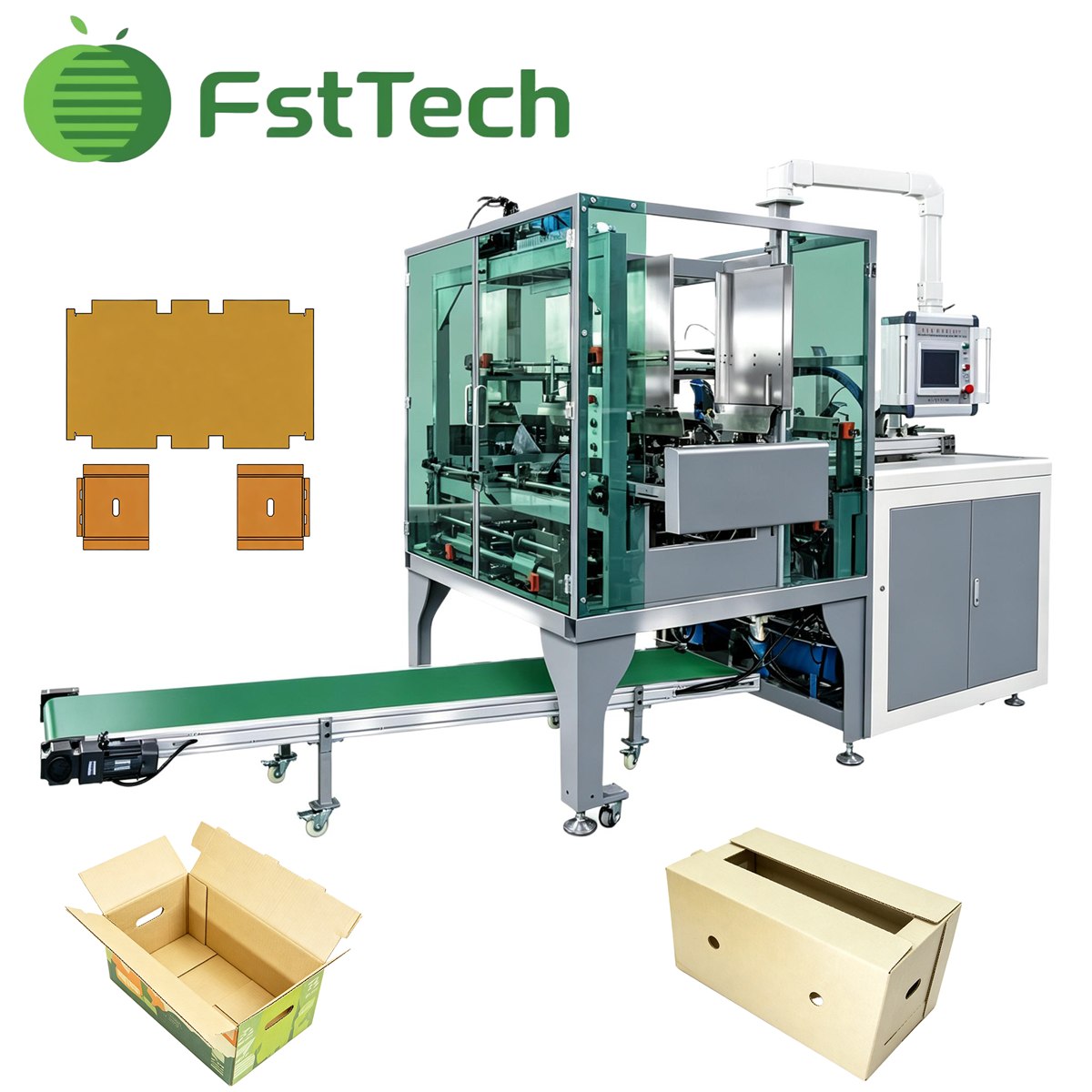

Three-Piece Fruit Box Forming Machine
Forms three-piece fruit cartons from one main cardboard sheet plus two side panels — automatic feeding, gluing, positioning and forming at 1,500–1,800 cartons per hour.
Applications
- Three-piece fruit cartons
- Cartons with separate side panels
- Cartons needing stronger side support
- Special carton structures not made from one flat sheet
Features
- Three-piece formingFeeds, positions, glues and forms the main board and two side panels into an open-top fruit box.
- 1,500–1,800 cartons/hourContinuous forming for fruit packing lines that need stronger side support.
- 1.5–5 mm cardboardFinished cartons from 220–400 mm long, 180–380 mm wide and 70–250 mm high.
- FST model namingPublic model FST-CF1300-3P, single-machine direction for produce packhouses.
Technical Specifications
- Public model
- FST-CF1300-3P
- Carton structure
- Three-piece fruit carton
- Speed
- 1,500–1,800 cartons/hour
- Cardboard thickness
- 1.5–5 mm
- Carton size (L×W×H)
- 220–400 × 180–380 × 70–250 mm
- Total power
- 13 kW (approx. 5 kW in production), 380V / 50Hz
- Machine weight
- Approx. 1,800 kg
- Dimensions (L×W×H)
- 2,730 × 2,200 × 2,650 mm
Working Process
Feeding and gluing
The main cardboard sheet and two side panels are fed, positioned and glued automatically.
Forming
The three pieces are assembled into an open-top fruit carton with stronger side support.
Carton output
Finished cartons are discharged for downstream fruit packing.
Working Video
FAQ
When do I need a three-piece machine?
When the carton uses a three-piece structure with separate side boards. One-flat-sheet cartons are handled by the open-top machine.
What speed does it run at?
1,500–1,800 cartons per hour with 1.5–5 mm cardboard.
