Potato Dosing Packing Machine

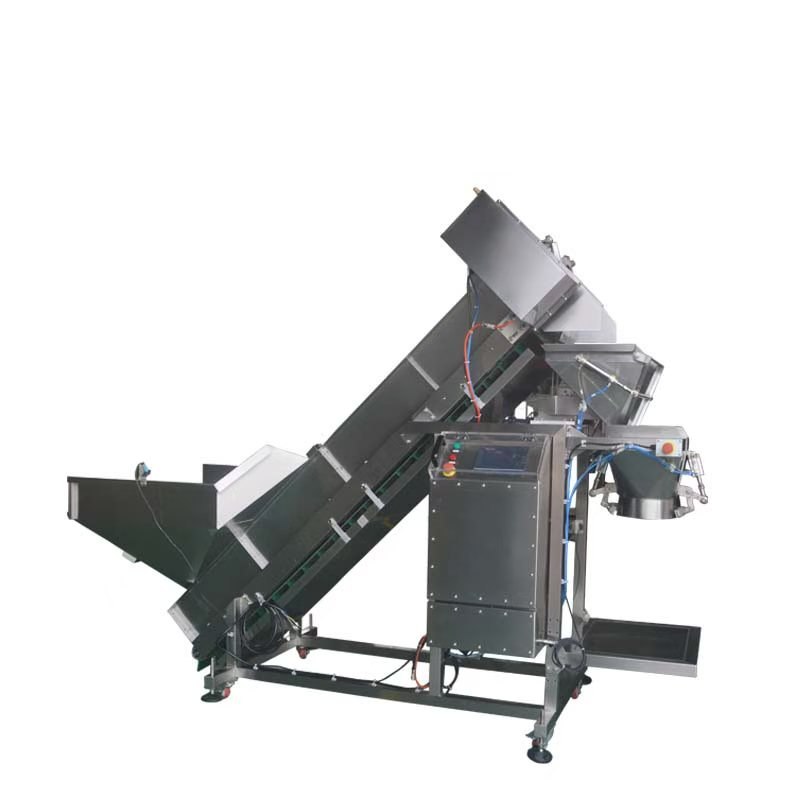

A quantitative weighing bagging system for potatoes and onions — belt infeed, twin-belt dosing weigher, bag clamping and sewing, packing 5–25 kg bags at 4–5 bags per minute.
Applications
- Potato and onion bulk bags
- Sweet potato and taro packing
- 5–25 kg retail and wholesale bags
- Bulk produce packing stations
Features
- 5–25 kg per bagThe 50 L dosing weigher fills each bag to the target weight with ±1–3 piece accuracy.
- 4–5 bags per minuteTwin-belt feeding — a big belt for coarse filling and a small belt for fine trimming — keeps dosing fast and precise.
- Hands-free bag clampingThe clamping device holds the bag upright during filling and weighing — no operator needed at the station.
- Complete lineBelt infeed, dosing weigher, bag clamp and sewing machine arrive as one integrated system.
Technical Specifications
- Weighing range
- 5–25 kg per bag
- Packing speed
- 4–5 bags/minute
- Accuracy
- ±1–3 pieces
- Weighing hopper
- 50 L, twin-belt coarse/fine feeding
- Infeed conveyor
- 3 m, 304 SUS frame, food-grade belt
- Sewing
- Single line, height 400–900 mm, 1–16 m/min
- Frame
- SUS304 stainless steel
- Power supply
- 220V / 380V, 50/60Hz
Working Process
Conveyor infeed

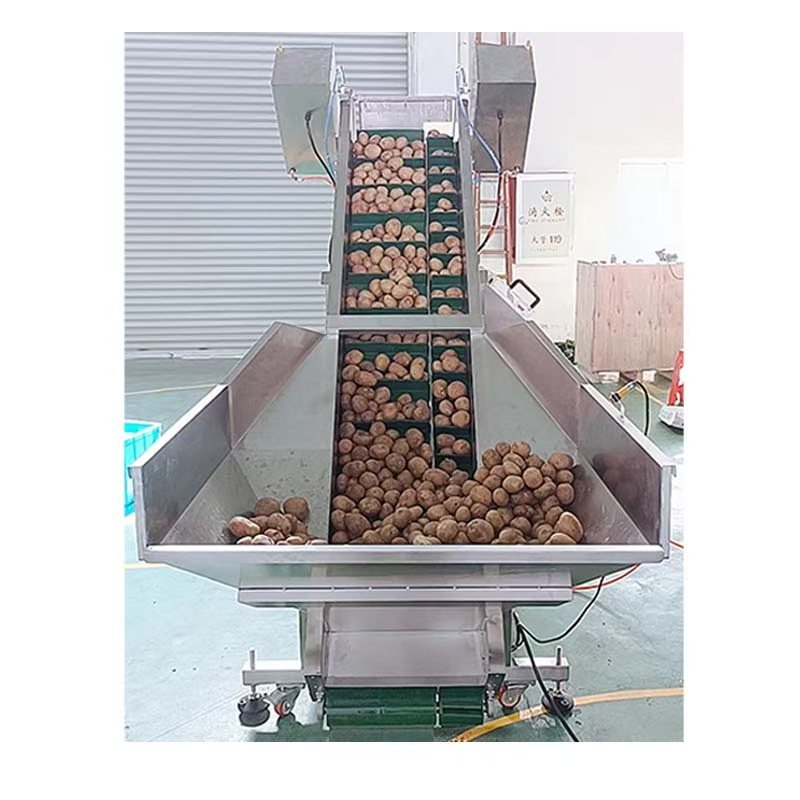

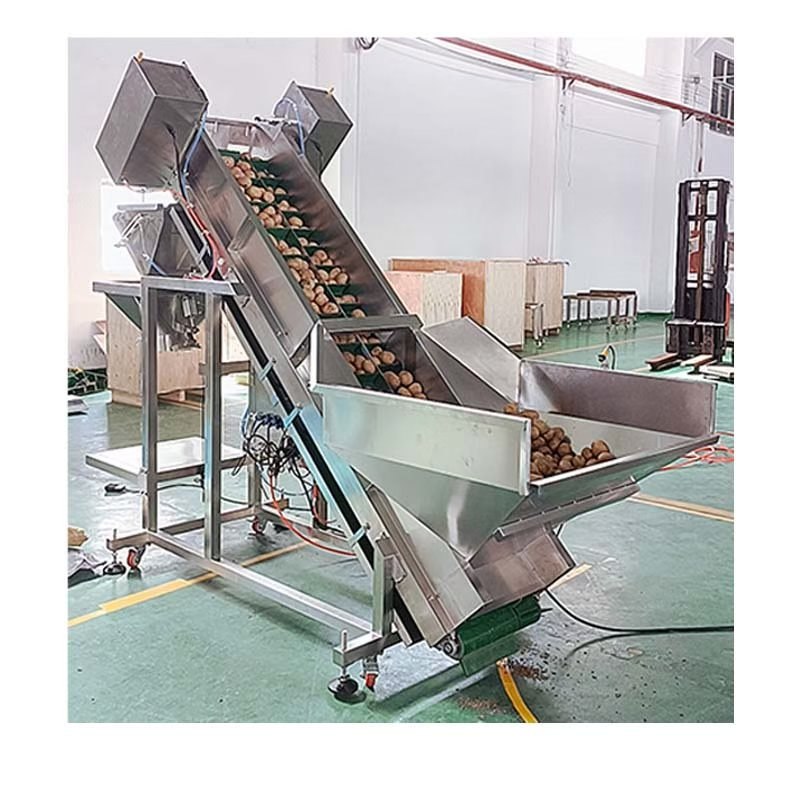

A 3-meter belt conveyor presents potatoes to the dosing weigher — height customizable, usable alone or line-integrated.
Twin-belt dosing
The big belt fills coarsely, the small belt trims to the target weight — 50 L hopper, high-precision load cell.
Clamped weighing
The bag clamp device holds the bag upright so filling and weighing run hands-free.
Sewing and discharge
A single-line sewing machine closes the bag at 1–16 m/min with sewing height adjustable 400–900 mm.
Working Video
FAQ
What bag weights does it pack?
The dosing weigher covers 5–25 kg per bag with ±1–3 piece accuracy, suited to retail and wholesale bulk bags.
Which products can it pack?
Potatoes, onions and similar large granules — sweet potato and taro are also common applications.
Does someone have to hold the bag?
No — the bag clamping device holds the bag upright for filling and weighing, hands-free.
