Open-Top Produce Box Forming Machine
Forms one-piece open-top corrugated produce cartons from pre-cut flat cardboard — fruit trays, vegetable cartons and display boxes at 1,200–3,000 cartons per hour.
Applications
- Fruit trays and vegetable cartons
- Open-top produce cartons
- Display-style produce boxes
- General fruit and vegetable packing lines
Features
- 1,200–3,000 cartons/hourAutomatic cardboard feeding, folding, edge pressing and carton output from pre-cut flat sheets.
- Wide carton rangeFinished cartons from 180–650 mm long, 180–470 mm wide and 60–230 mm high with 1.5–5 mm cardboard.
- Line-ready forming sectionSelected as the carton forming section of produce packing projects, feeding downstream filling stations.
- FST model namingPublic model FST-CF1280; an economy FST-CF1200 configuration is available for the same carton range.
Technical Specifications
- Public model
- FST-CF1280
- Carton structure
- One-piece open-top corrugated carton
- Speed
- 1,200–3,000 cartons/hour
- Cardboard thickness
- 1.5–5 mm
- Carton size (L×W×H)
- 180–650 × 180–470 × 60–230 mm
- Total power
- Approx. 12 kW, 380V / 50Hz
- Machine weight
- Approx. 2,000 kg
- Dimensions (L×W×H)
- 2,950 × 1,820 × 2,500 mm
Working Process
Cardboard feeding

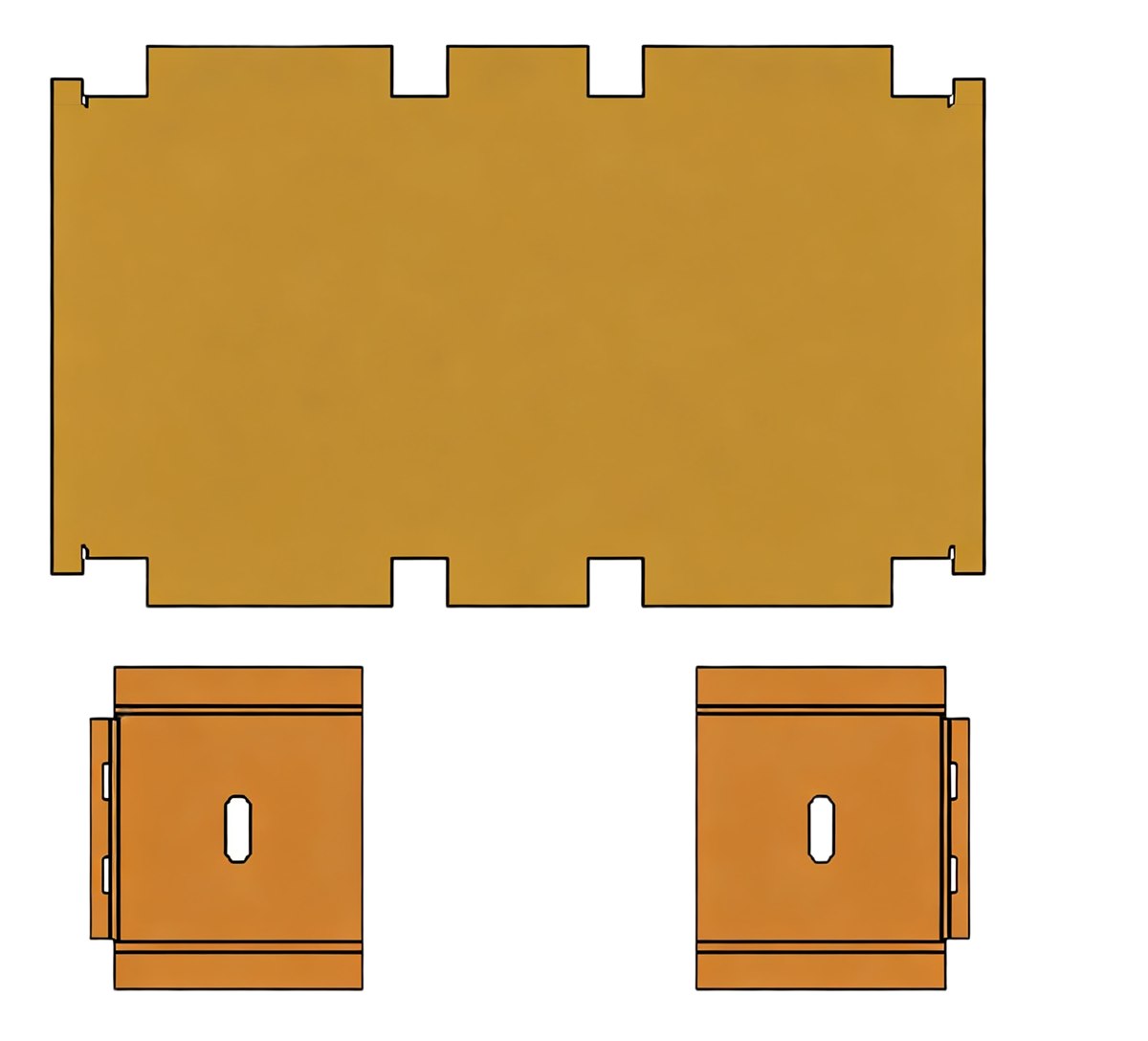

Pre-cut flat cardboard sheets are picked from the stack and fed into the forming section.
Folding and gluing
The sheet is folded, glued and edge-pressed into an open-top carton.
Carton output
Finished cartons are discharged for downstream filling and packing.
Working Video
FAQ
Which cartons does this machine form?
One-piece open-top corrugated cartons made from a single pre-cut flat sheet — fruit trays, vegetable cartons and display boxes.
What cardboard can it process?
Corrugated cardboard from 1.5 to 5 mm thickness, stacked up to 500 mm high (30 kg).
