14-head bucket multihead weigherPacking equipment
Multihead Weigher

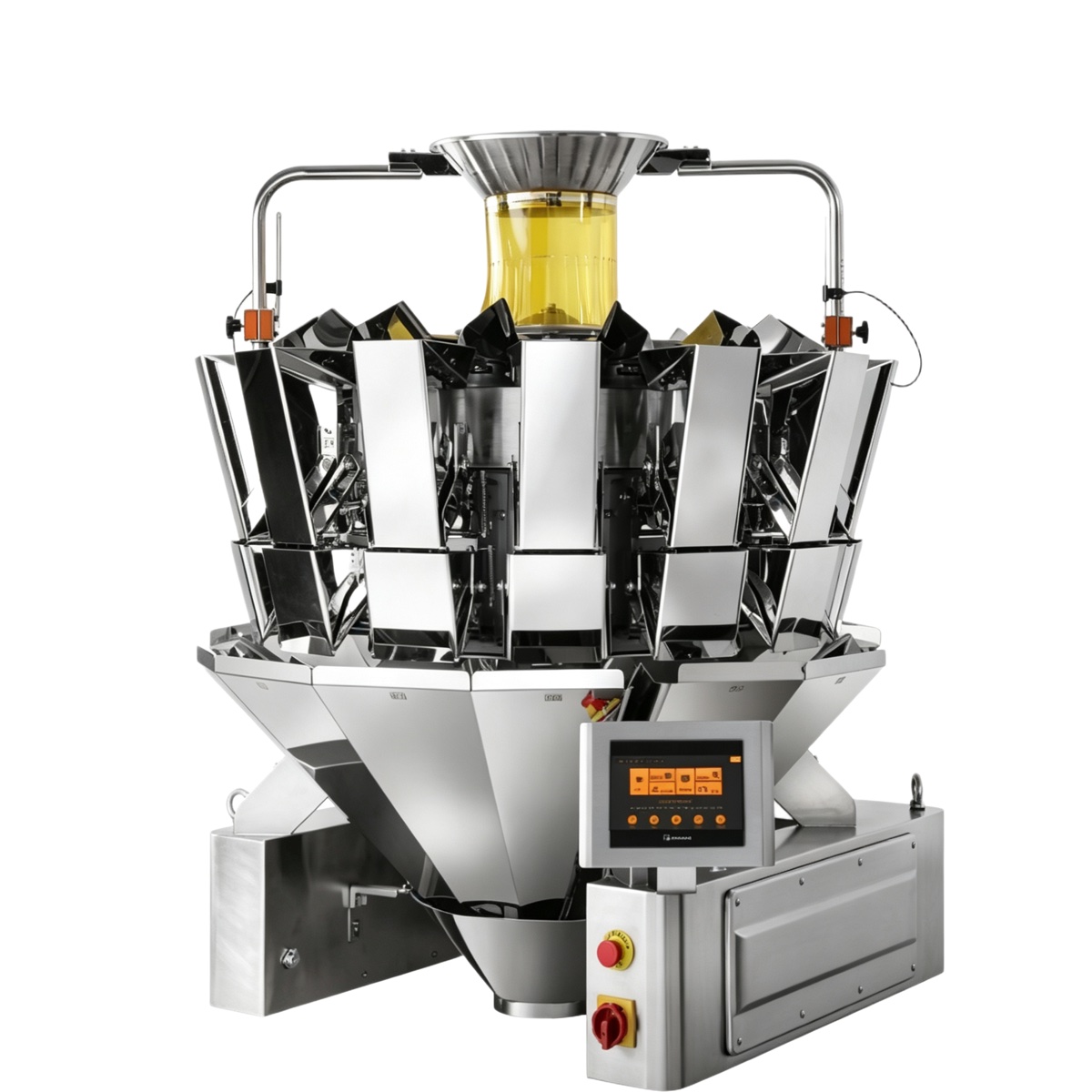

A 14-head bucket multihead weigher for fruit and vegetable lines — belt conveying replaces the traditional vibratory feeder for more even feeding, weighing 100–3,000 g portions at up to 50 dumps per minute.
Applications
- Precise weighing of fruit, nuts, vegetables and salads
- Light, bulky materials such as leafy salad and large nuts
- Weighing before net bag or pillow packing
- Line integration with an infeed elevator and packing machine
Features
- Belt conveying feedBelt conveying replaces the traditional linear vibratory feeder, presenting product to the buckets more evenly so combinations weigh more accurately.
- High-precision digital load cellsFast-sampling digital sensors with manual or auto zero clearing and dynamic zero tracking; an optimized sampling algorithm keeps weighing accurate.
- Weighing and counting dual modeCombined weighing and counting functions raise counting accuracy when portion counts matter.
- Staged dischargeThe collection hopper discharges in stages, preventing product blocking with sticky or leafy materials.
- Easy-clean bucket designTop infeed hoppers and bottom discharge hoppers detach easily for cleaning; standardized interchangeable parts on a stable box-section frame.
Technical Specifications
- Weighing heads
- 14 heads, 5 L buckets
- Single-bucket range
- 100–3,000 g
- Accuracy class
- x(0.5)
- Scale division
- 0.1 g
- Weighing speed
- Up to 50 dumps/min
- Control system
- MCU with 10-inch touchscreen
- Feeding
- Belt conveying (replaces vibratory feeder)
- Machine weight
- 750 kg (net)
Working Process
Belt feed

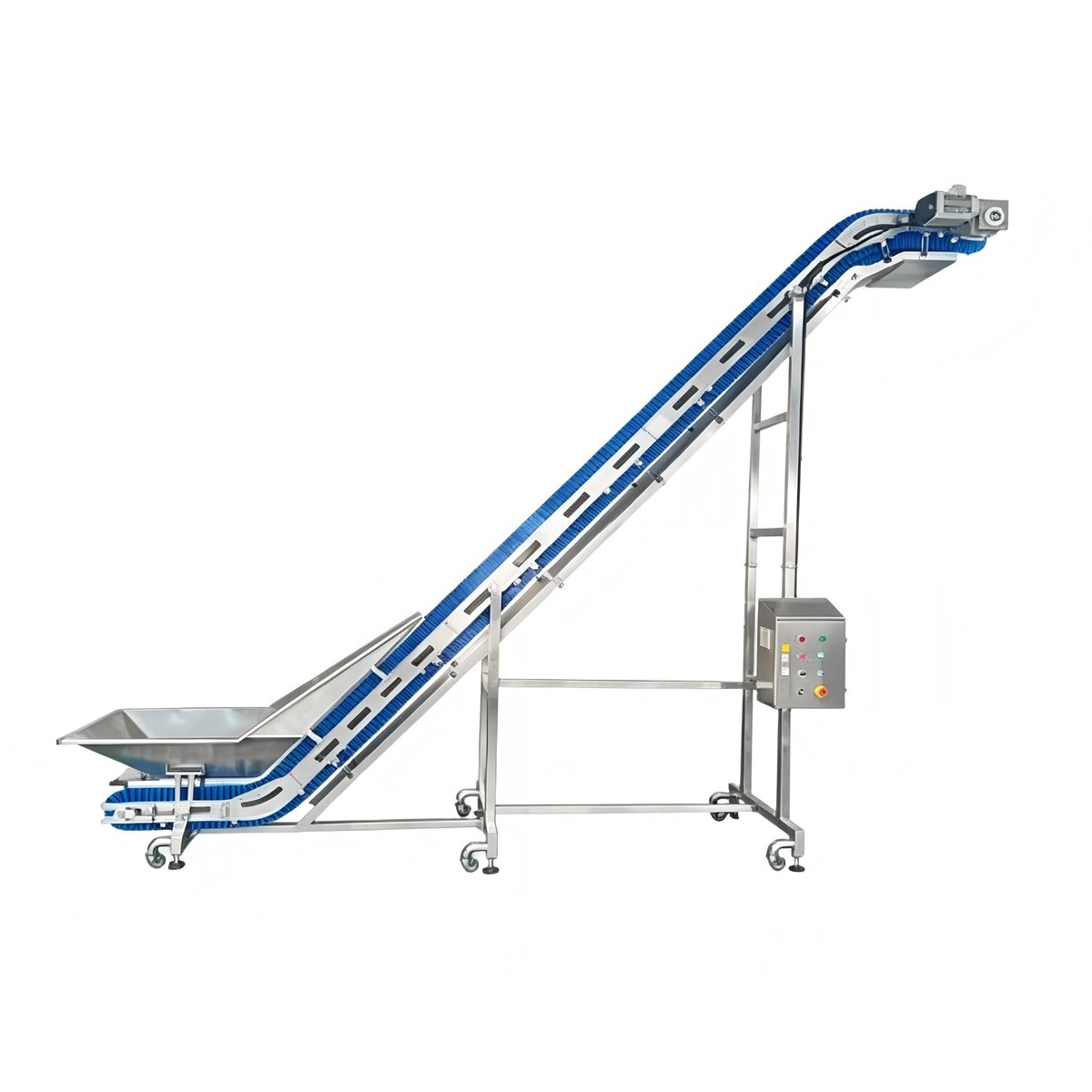

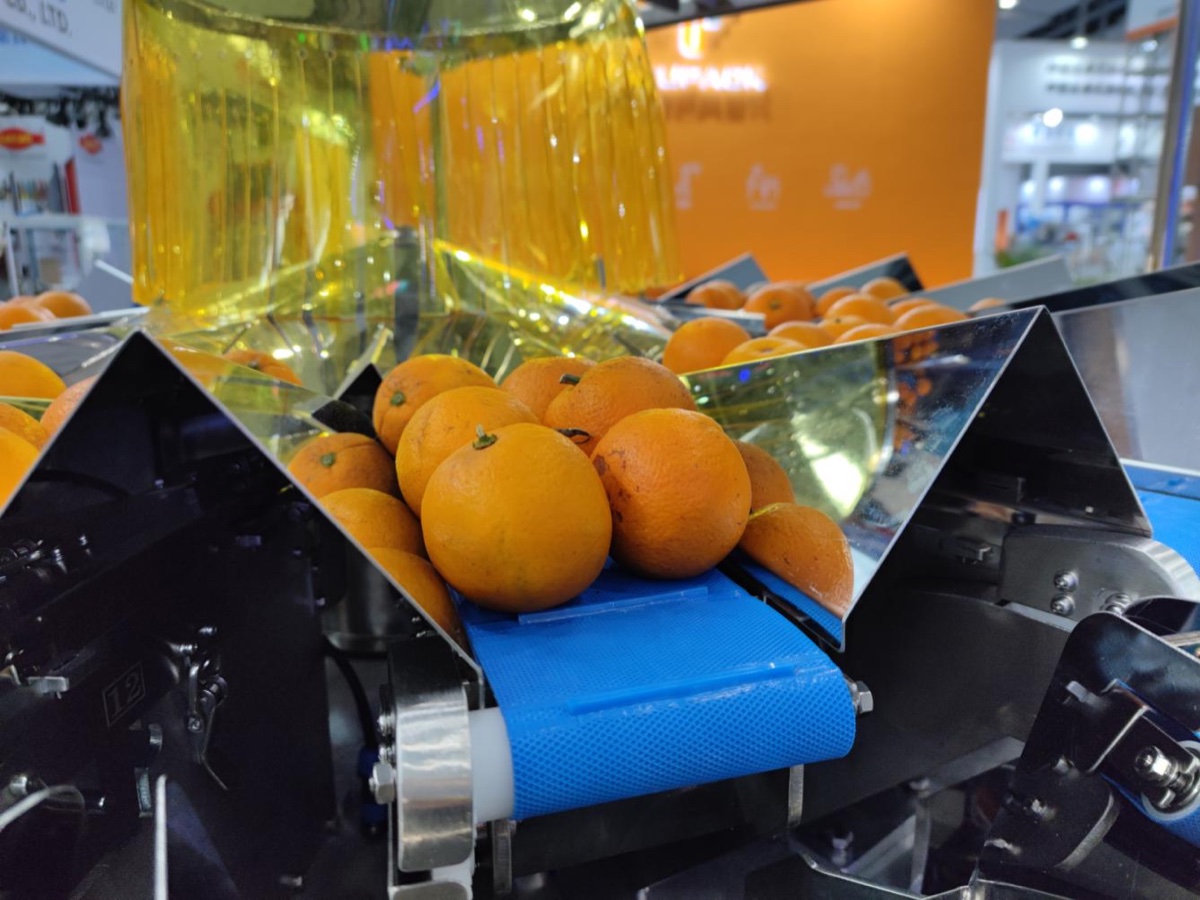

An infeed elevator or conveyor raises the product; the belt distribution system delivers it evenly to the 14 weighing buckets — steadier and gentler than a vibratory feeder.
Combination calculation
The control system selects the bucket combination closest to the target weight; digital load cells sample at high speed with dynamic zero tracking.
Staged discharge
The selected buckets release into the collection hopper, which discharges in stages to the packing machine below — staged emptying prevents blocking.
Line integration
Paired with an infeed elevator and a net bag or pillow packing machine, the weigher becomes the weighing heart of a complete packing line.

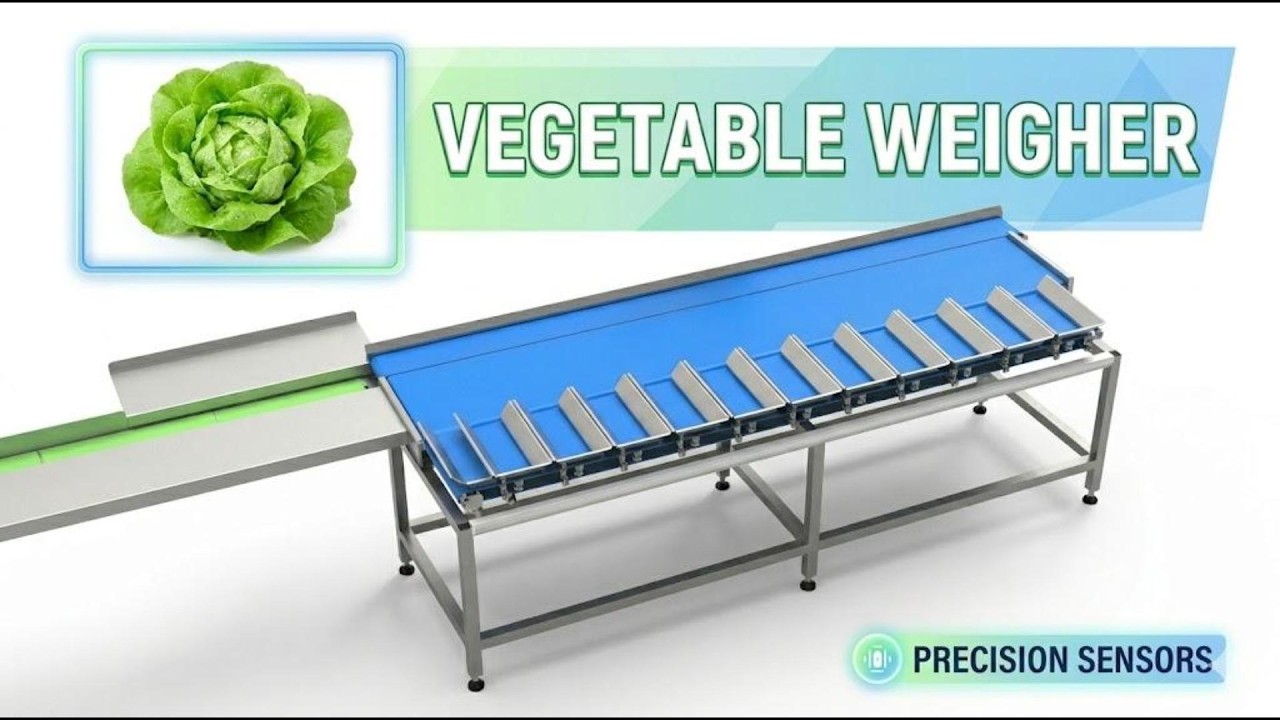

Working Video
FAQ
Which products suit the 14-head bucket weigher?
Light, bulky materials that are hard to vibrate evenly — leafy salads, vegetables, large nuts — plus precise weighing of fruit before net bag or pillow packing.
How fast does it weigh?
Up to 50 dumps per minute with a single-bucket range of 100–3,000 g and a 0.1 g scale division; actual speed depends on the material.
Why belt conveying instead of a vibratory feeder?
Compared with a traditional 14-head 5.0 L combination weigher, the belt conveying structure feeds the buckets more evenly, so weighing is more accurate.
Can it connect to my packing machine?
Yes — it is designed to work with an infeed elevator and net bag or pillow packing machines as a complete weighing-packing line.
