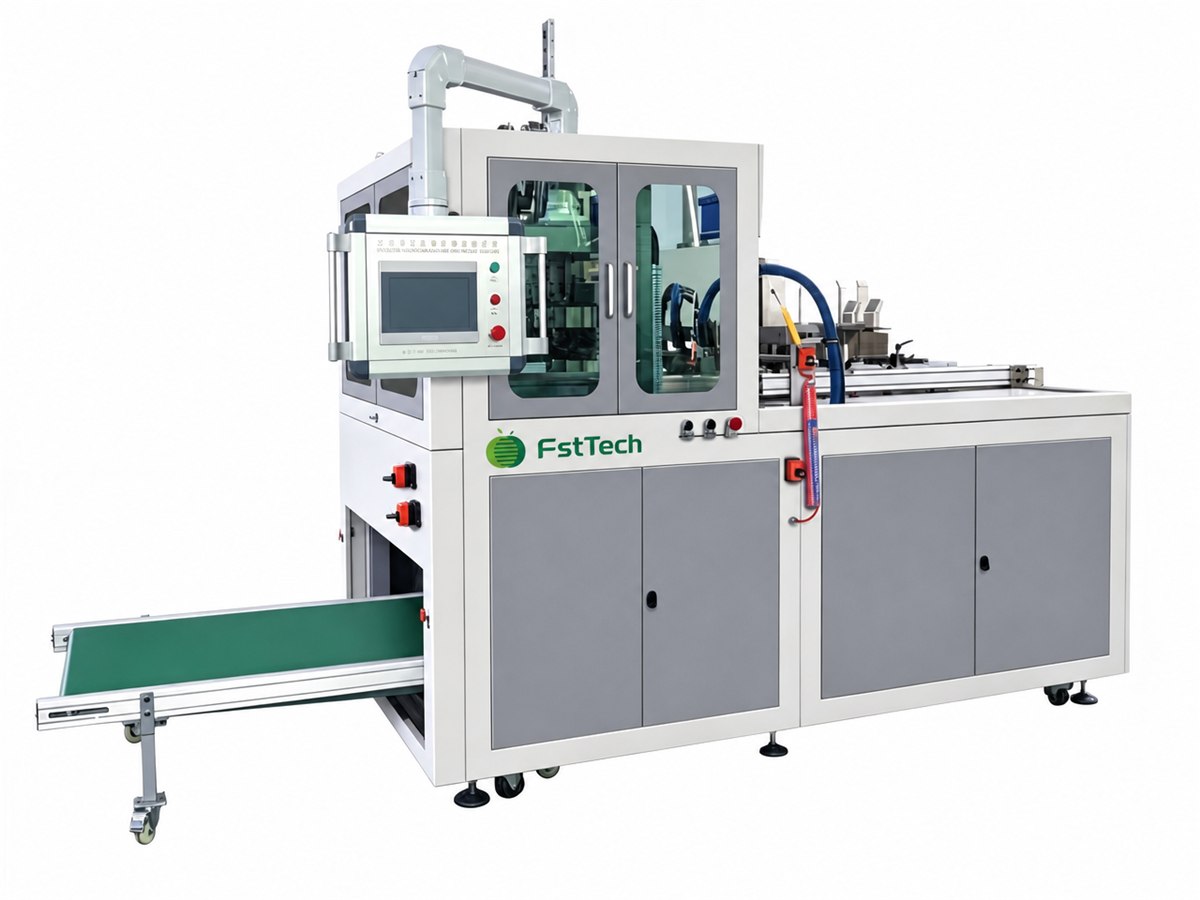

Large Fruit Box Forming Machine
Forms large open-top corrugated cartons and foldable load-bearing boxes for bulk produce — thicker cardboard, heavier stacks, at 1,500–1,800 cartons per hour.
Applications
- Large fruit cartons
- Heavy-duty produce cartons
- Bulk fruit packing
- Thicker corrugated carton forming
Features
- Larger, thicker cartonsHandles carton sizes and cardboard thickness beyond a standard open-top machine — 1.5–7 mm cardboard.
- 1,200 mm stack heightSupports 100 kg cardboard stacks for continuous bulk produce packing.
- 1,500–1,800 cartons/hourCartons from 220–680 mm square and 70–250 mm high.
- FST model namingPublic model FST-CF1600; a foldable load-bearing FST-CF1600L configuration is available.
Technical Specifications
- Public model
- FST-CF1600
- Carton structure
- Large open-top fruit carton
- Speed
- 1,500–1,800 cartons/hour
- Cardboard thickness
- 1.5–7 mm
- Carton size (L×W×H)
- 220–680 × 220–680 × 70–250 mm
- Total power
- 12 kW (approx. 5 kW in production), 380V / 50Hz
- Machine weight
- Approx. 2,300 kg
- Dimensions (L×W×H)
- 5,200 × 4,315 × 2,600 mm
Working Process
Stack feeding
Thicker cardboard sheets are fed from a tall stack magazine rated for 100 kg loads.
Forming
Large open-top cartons are folded, glued and pressed to size.
Carton output
Finished heavy-duty cartons are discharged for bulk produce filling.

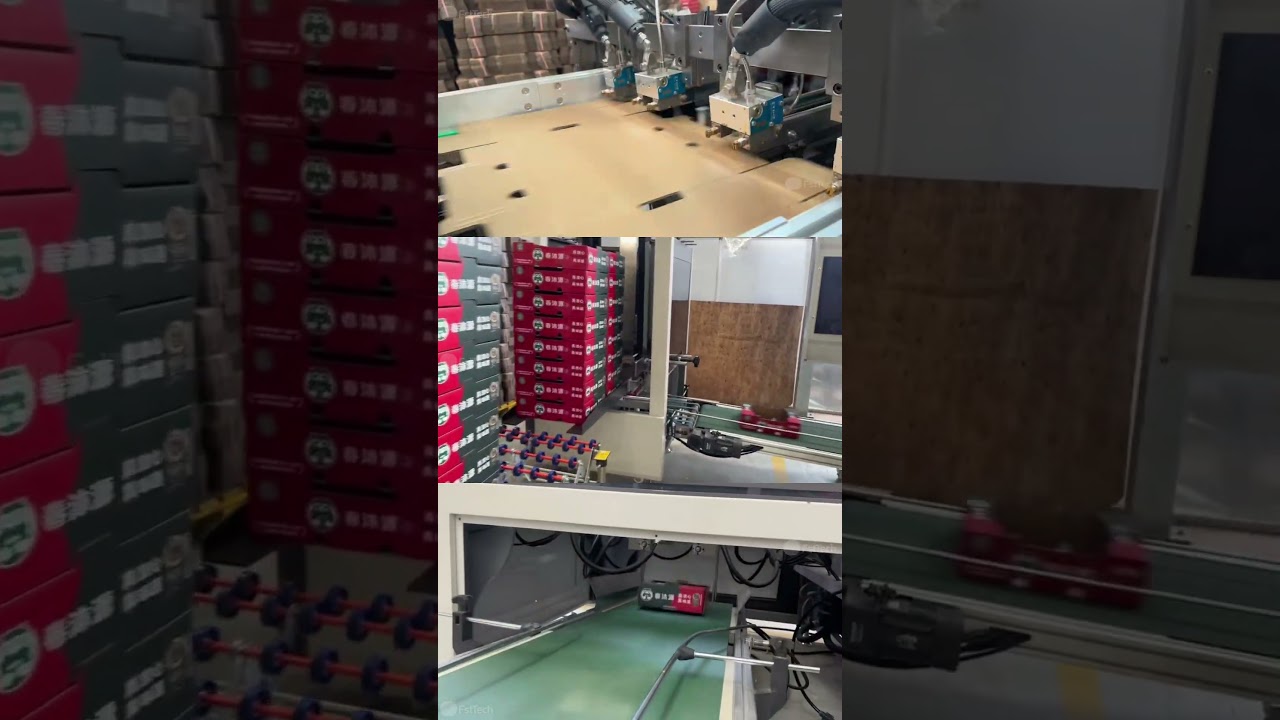

Working Video
FAQ
When do I choose this machine?
When the carton is larger, heavier or uses thicker corrugated cardboard than a standard open-top machine handles.
Is there a load-bearing option?
Yes — the FST-CF1600L configuration forms foldable load-bearing cartons; tell us your carton drawing.
