Horizontal net bag packing machineHorizontal net bag packing machine

Packing equipment

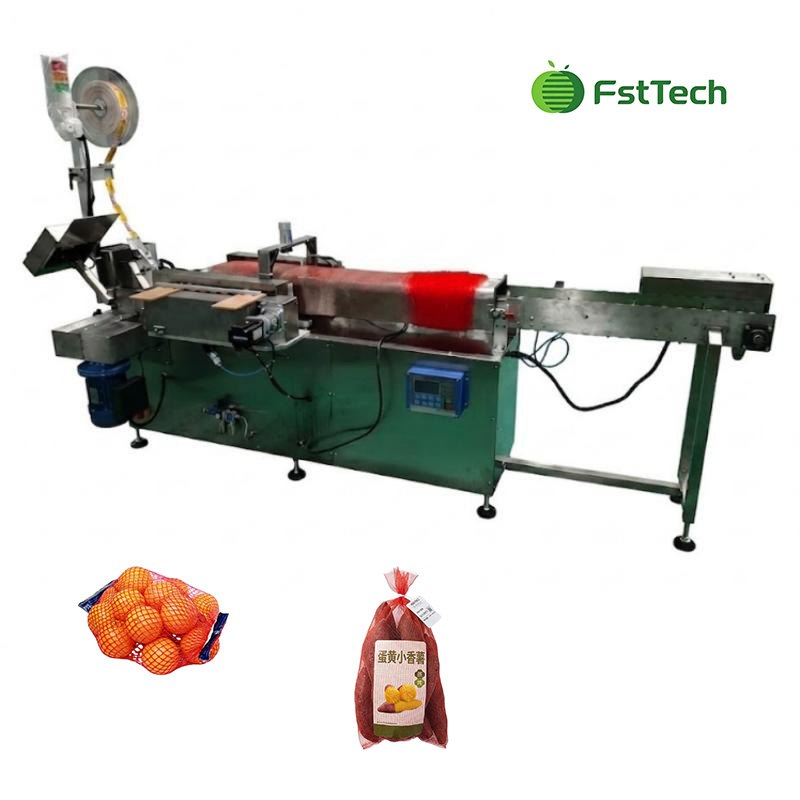

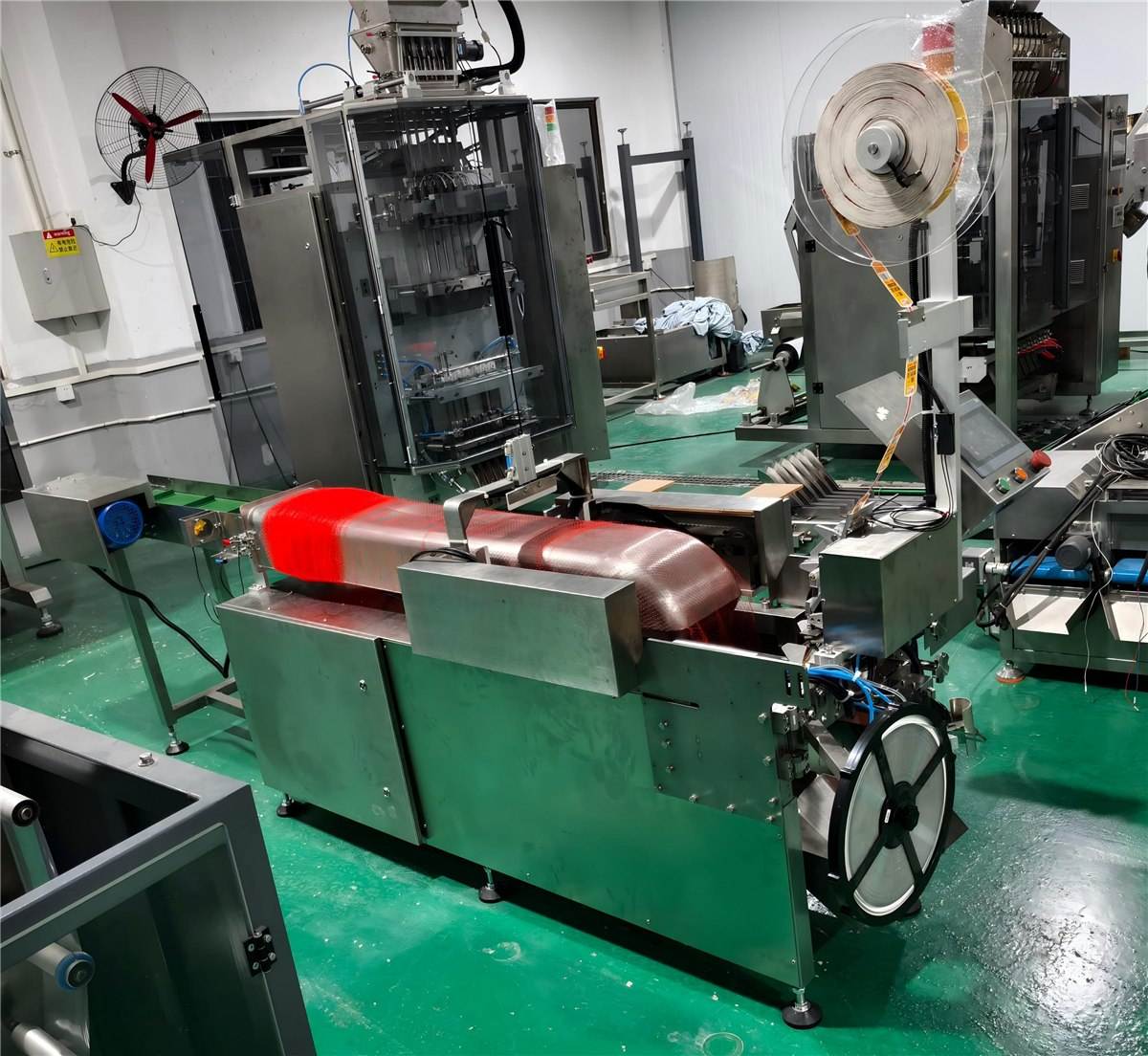

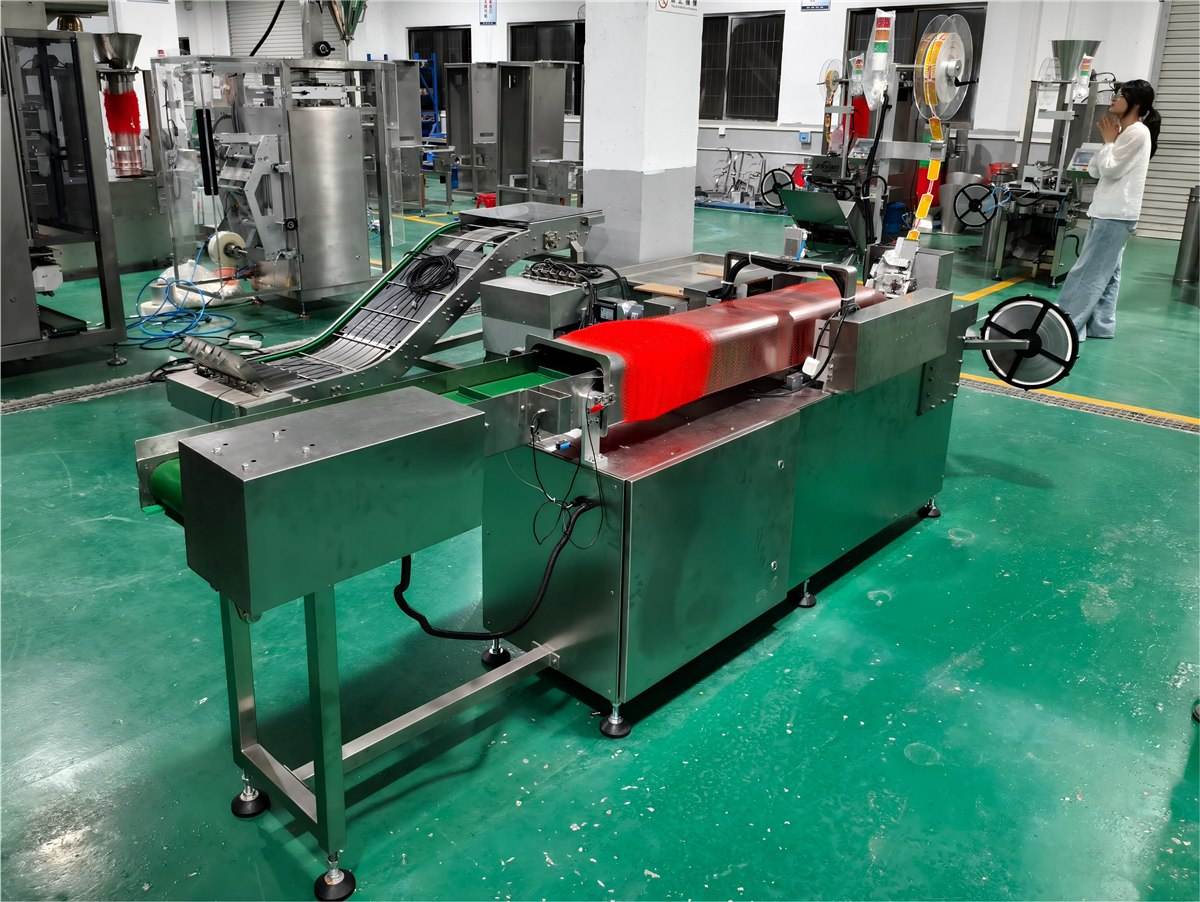

Horizontal Net Bag Packing Machine

A fully automatic horizontal mesh bag packaging machine that forms, fills, clips and discharges ventilated net bags at 12–25 bags per minute — 304 stainless steel, gentle low-impact infeed for firm produce.

Applications

  • Potatoes, onions, garlic and ginger
  • Citrus, apples and longan
  • Walnuts and peanuts
  • Supermarket prepacks and distribution centers
Request a Machine Recommendation

Features

  • 12–25 bags per minuteFully automatic bagging and tying from feeding to sealing — one machine replaces manual bagging labor.
  • Gentle horizontal infeedThe straight, low-impact infeed protects firm produce and integrates with an upstream conveyor or multihead weigher.
  • Intelligent fault detectionAutomatic alarms and shutdowns for no-product, no-netting or no-tying-wire conditions keep operation uninterrupted.
  • Secure metal-clip sealingThe automatic clip system seals both bag ends with 3 mm tying wire for strong, retail-ready closures.

Technical Specifications

Packing speed
12–25 bags/minute
Max. bag length
Adjustable up to 500 mm
Frame & contact parts
304 stainless steel
Power supply
220V / 50Hz, 5 kW
Air consumption
0.5 m³/h at 0.5–0.7 MPa
Tying wire
3 mm diameter
Netting
HDPE, sleeve type
Machine weight
Approx. 700 kg

Working Process

  1. Feeding

    Products are placed on the conveyor manually or via an upstream conveyor and transported to the bagging station.

  2. Mesh bag forming

    Mesh netting is drawn from a roll and formed into a tubular bag around the product.

  3. Automatic tying

    Both bag ends are cinched and sealed with 3 mm metal clips in one automatic action.

  4. Discharge

    Finished mesh bags are discharged for collection or downstream case packing.

Working Video

FAQ

What packing speed does it reach?

12–25 bags per minute depending on product and feeding speed.

Which products suit mesh bags?

Firm produce such as potatoes, onions, garlic, citrus, apples, walnuts and peanuts. Leafy greens and long sharp items may need adapted mesh.

What happens if material runs out?

The machine alarms and stops automatically on no-product, no-netting or no-tying-wire conditions to prevent waste.

Need horizontal net bag packing machine that fits the rest of your process?
