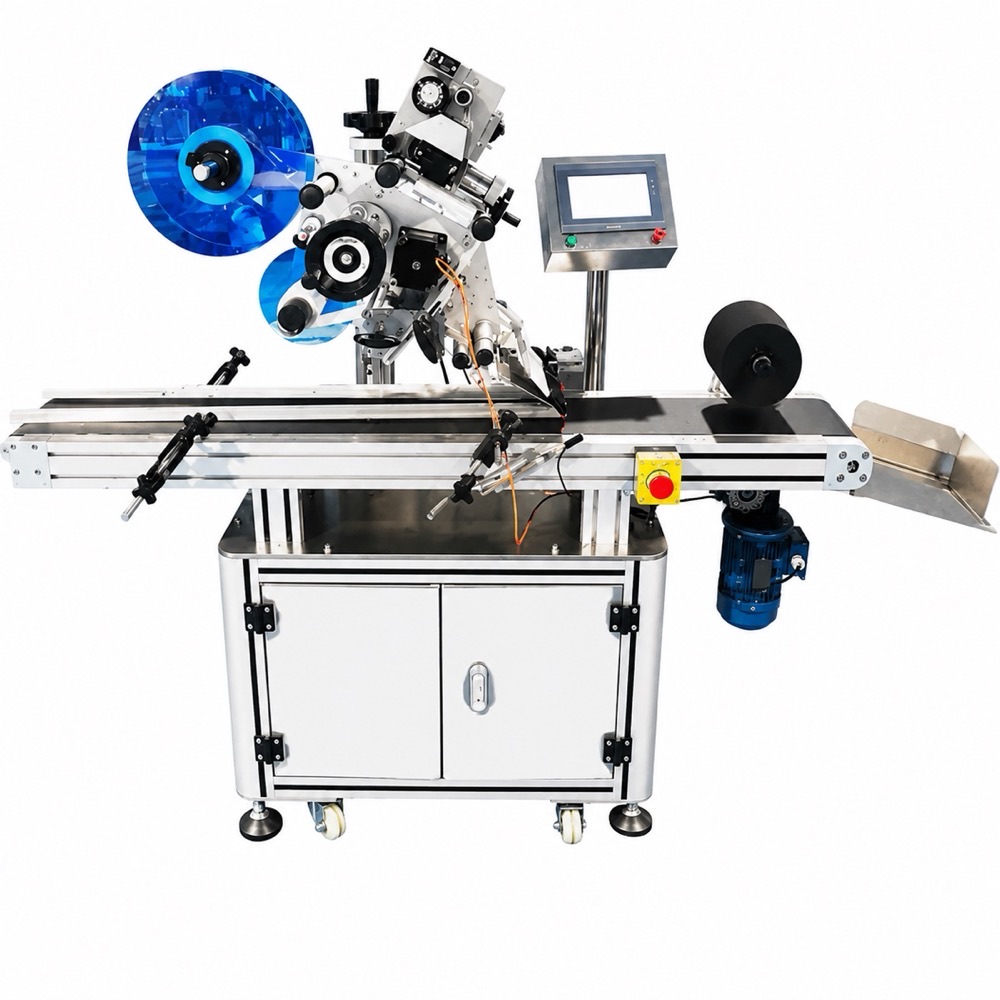

Flat Surface Labeling Machine
A roll-fed labeler that applies pre-printed self-adhesive labels onto flat surfaces — produce punnets, cartons and tray lids — at 30–120 pcs/min with ±1 mm accuracy, ready to join an existing line.
Applications
- PLU, origin and barcode stickers on fruit punnets and clamshells
- Outer cartons, box tops and sealed tray lids
- Fixed pre-printed roll labels at line speed
- Salad clamshells, herb containers and vegetable trays
Features
- 30–120 pcs/min, ±1 mmHigh-speed labeling of flat-packed goods with ±1 mm placement accuracy, independent of product and label tolerances.
- Fixed pre-printed roll labelsApplies self-adhesive labels from a roll — unwind, peel, apply, rewind run continuously; label content is fixed, so there is no printing system to set up.
- XYZ + angle adjustable headThe labeling head adjusts on three axes plus one angular layer, so the label position matches each product and label layout.
- Flat surfaces to 700 × 280 mmHandles products up to 700 mm long, 280 mm wide and 110 mm high — punnets, clamshells, trays and cartons within the range.
- Line-connectableConveyor width 294 mm with 300 or 500 mm options and 750 mm line height — bolts onto an existing packing line.
- Optional coder and second headA hot-stamp coder or inkjet printer can imprint date codes and batch numbers before application; a second head adds two-side or two-label passes.
Technical Specifications
- Labeling speed
- 30–120 pcs/min
- Labeling accuracy
- ±1 mm
- Max label width
- 130 mm (incl. liner)
- Label head width
- 130 mm (180/230 mm optional)
- Max product size
- 700 × 280 × 110 mm
- Compatible trays
- 100–250 × 50–260 mm
- Conveyor width
- 200 mm (300/500 mm optional)
- Line connection height
- 750 mm
- Power consumption
- 0.8 kW
- Footprint
- 2,000 × 800 × 1,500 mm
- Net weight
- ≈ 180 kg
- Frame
- Stainless steel 201, brushed
Working Process
Feed
Flat products — punnets, cartons, tray lids — ride the conveyor into the labeling position; guides hold them square to the head.
Peel

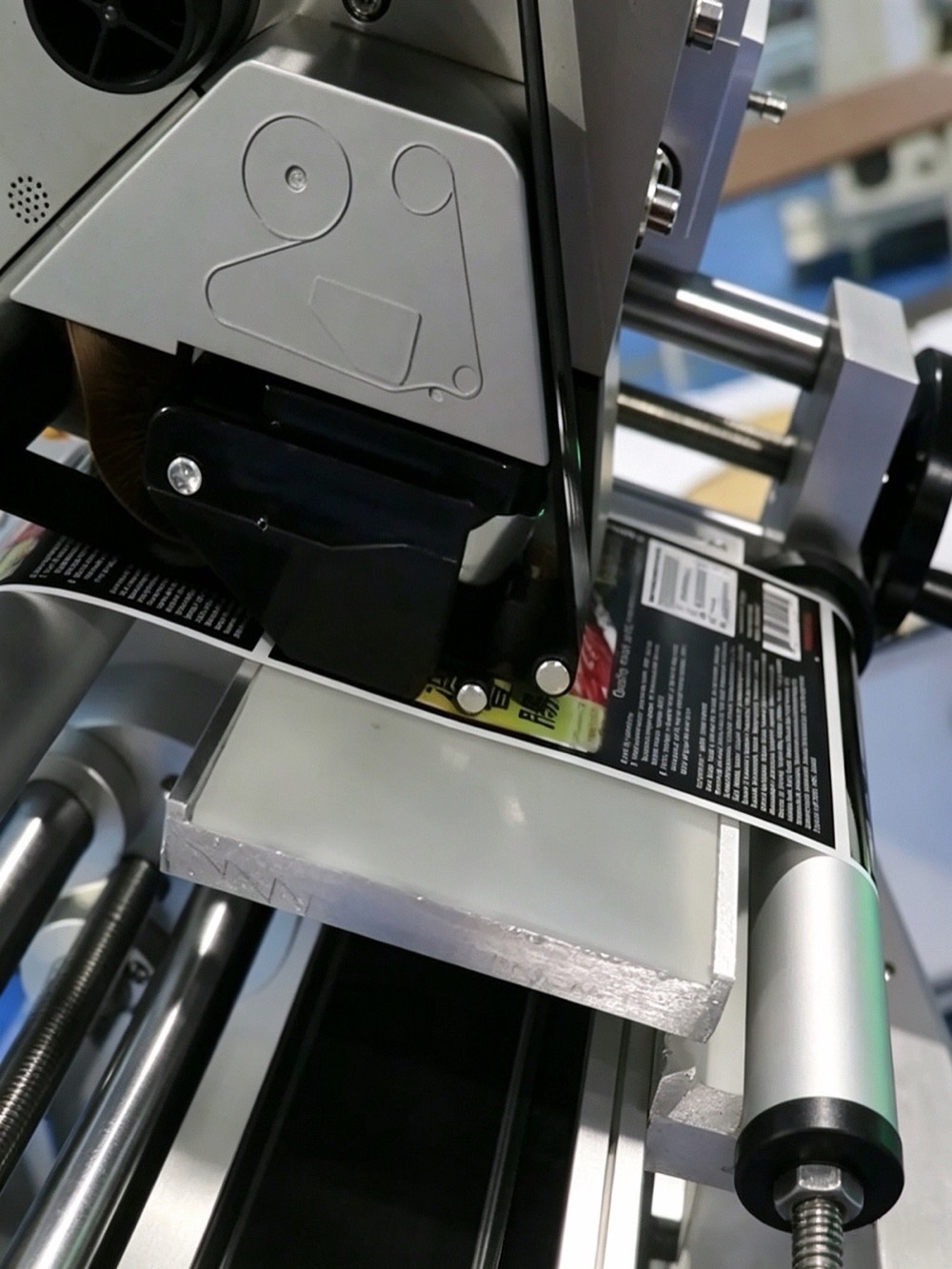

The unwind mechanism pulls the pre-printed roll forward and the peeling plate separates each label from its liner.
Apply
The applicator presses the label onto the flat surface at the XYZ-adjusted position — placement holds to ±1 mm at up to 120 pcs/min.
Rewind
The rewind mechanism collects the spent liner while labeled products continue down the line to collection or case packing.
Working Video
FAQ
What label sizes does it take?
Roll labels up to 130 mm wide including liner; the standard label head is 130 mm wide with 180 mm and 230 mm heads optional for wider labels.
What products can it label?
Any flat-surfaced product up to 700 mm long, 280 mm wide and 110 mm high — typical jobs are PLU and barcode stickers on produce punnets, clamshells and vegetable trays, plus outer cartons and sealed tray lids.
How fast and how accurate is it?
30–120 pcs/min depending on product size and label length, with ±1 mm placement accuracy excluding product and label tolerances.
Can it print date codes on the labels?
The standard machine applies fixed pre-printed labels. A hot-stamp coder or inkjet printer can be fitted to imprint date codes, batch numbers or barcodes onto labels before application.
