Cling film wrapping machinePacking equipment
Cling Film Wrapping Machine

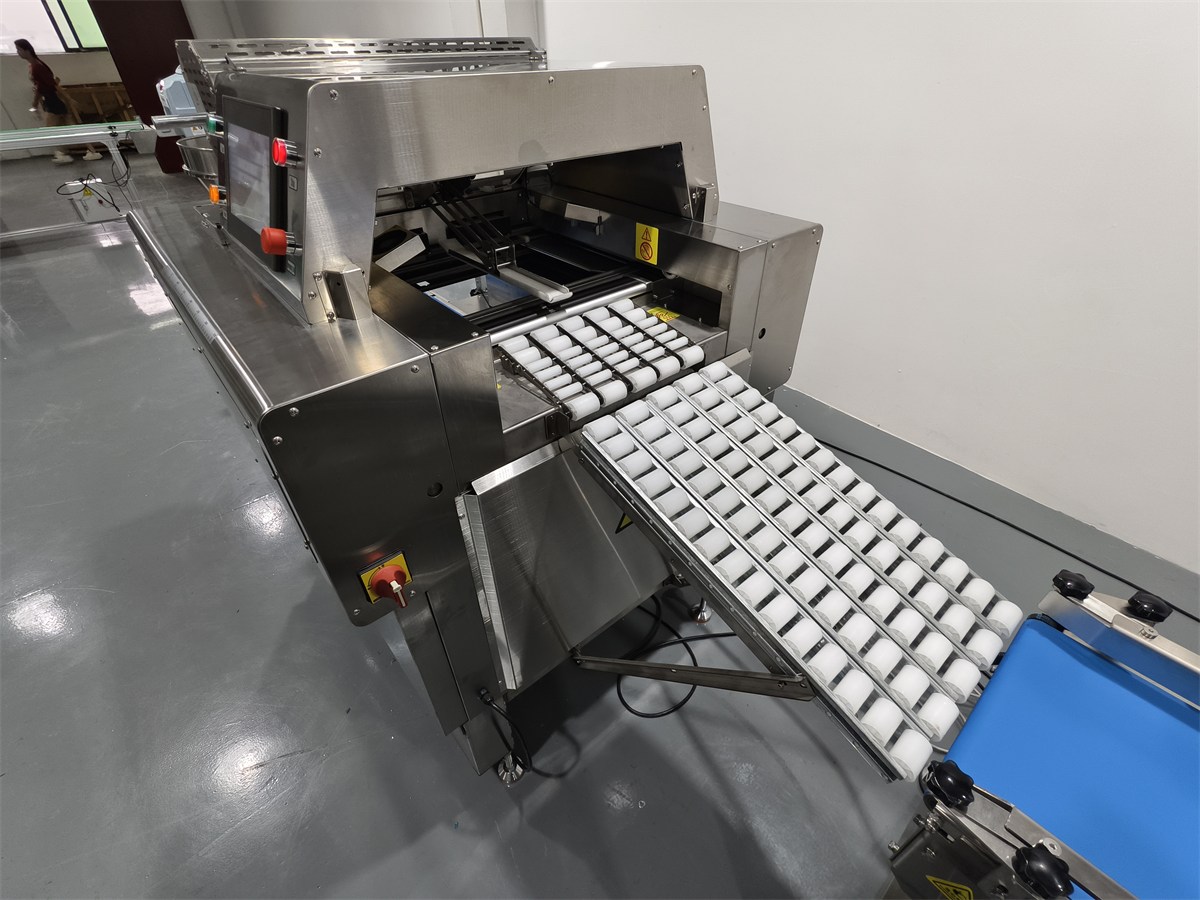

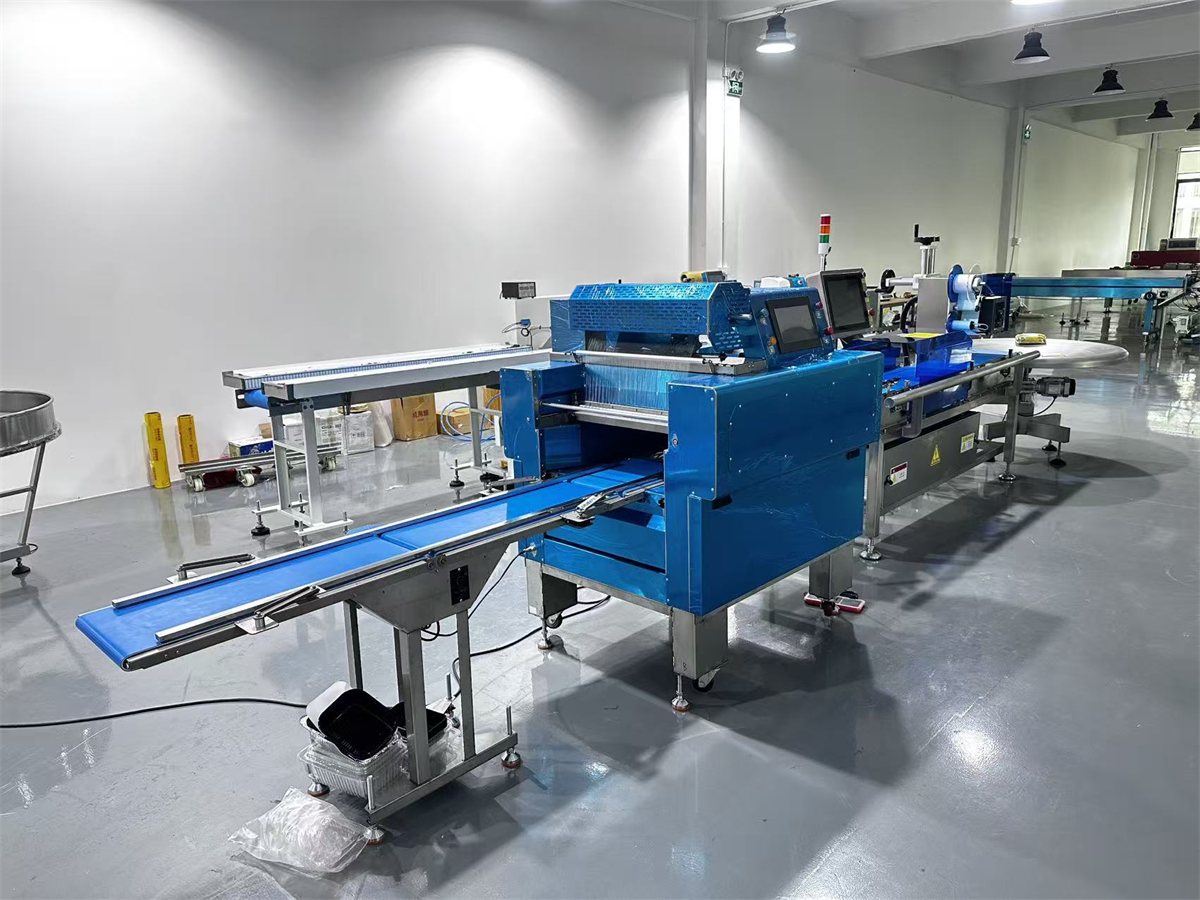

A fully automatic cling film wrapping machine for fresh produce: tray or tray-less, it detects each tray's size by itself — mixed sizes, no pre-sorting, no parameter setup — and wraps, seals and tucks 20–25 packs per minute, ready to connect to weighing and labeling.
Applications
- Supermarket fresh-food distribution centers
- Agricultural produce packing houses
- Central kitchens and fresh-cut vegetable plants
- Fresh e-commerce forward warehouses
- Trayed or loose produce before weighing and labeling
Features
- Mixed sizes, no pre-sortingTrays of different dimensions travel on the same belt; the machine detects each tray's size independently and matches the wrapping parameters — place and pack, no manual setup.
- Tray or tray-lessOne machine covers both tray-packed products (fruit clamshells, meat trays) and loose vegetables — the infeed conveyor is simply chosen to match your product: belt for trays, chain for loose produce.
- 20–25 packs/min, up to 4.5 kgContinuous conveyor wrapping with speed rising as product size falls; the 4.5 kg weight ceiling covers the vast majority of fresh categories.
- Tight, shelf-ready sealingConstant-temperature sealing with a precision cutting blade leaves smooth cuts and a tight, neat tuck — extending shelf life and lifting shelf presentation.
- One-button operationA touchscreen HMI starts the full sequence — feeding, wrapping, sealing, cutting, tucking — with no complex parameters, so operator training is minimal.

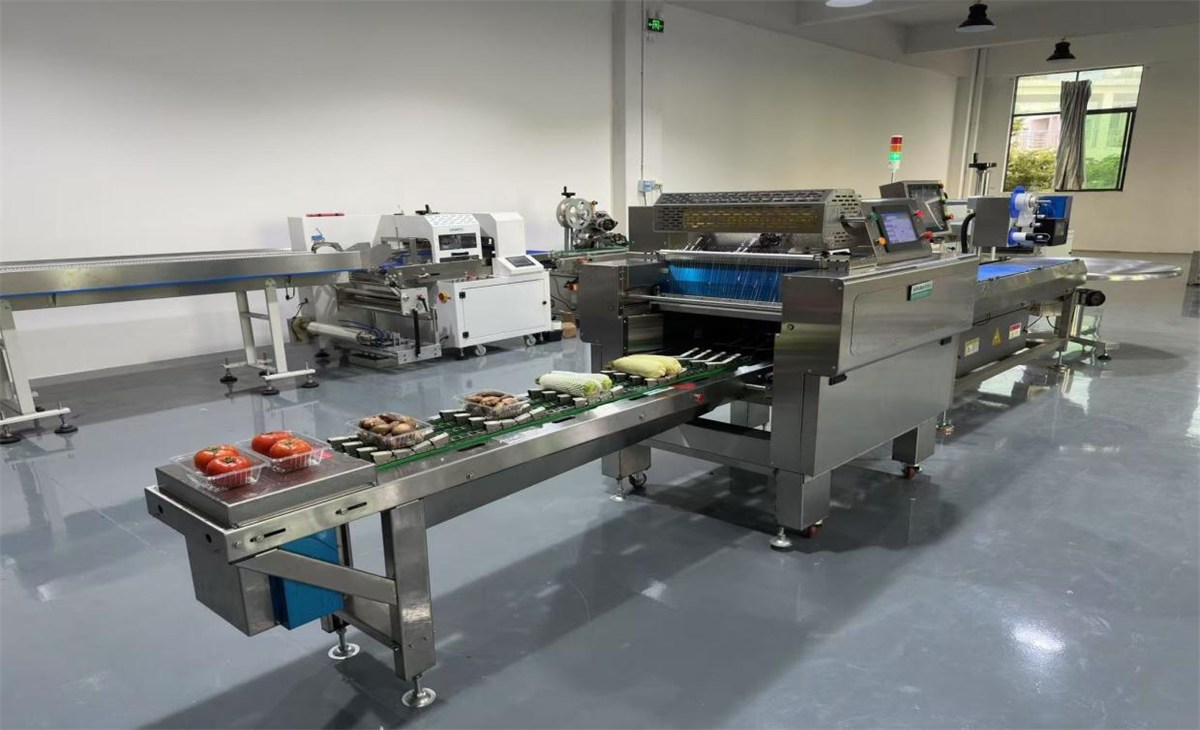

- Wrapping → weighing → labelingThe outfeed connects directly to a weigh-price-labeling machine, completing wrapping, weighing, printing and labeling without manual handling.
- Safe, hygienic buildFull 304 stainless steel frame (carbon steel optional for tighter budgets), safety light curtain, emergency stop and fault alarm.
Technical Specifications
- Packaging speed
- 20–25 packs/min (depends on product size)
- Product weight
- 50 g – 4.5 kg
- Product length
- 120–350 mm
- Product width
- 95–250 mm
- Product height
- 10–130 mm (tray base ≤ 50 mm)
- Film type
- PVC / PE food-grade stretch film (width customizable)
- Dimension detection
- Automatic per tray — mixed sizes, no setup
- Infeed conveyor
- Belt type for tray products, chain type for tray-less
- Control
- Touchscreen HMI, one-button start
- Frame material
- Full 304 stainless steel / carbon steel (optional)
- Safety
- Light curtain, E-stop, fault alarm
- Power supply
- 220V / 50Hz, single phase
Working Process
Feed
Products enter on the infeed conveyor — belt type for tray products, chain type for tray-less produce; trays of different sizes can share the same batch with no pre-sorting.
Detect
Each tray's dimensions are detected individually with no presets, and the tray moves into the wrapping station with matching parameters.
Wrap, seal and tuck
The machine pulls stretch film around the product, seals at constant temperature, cuts with the precision blade and tucks the edges for a tight, neat finish.
Weigh and label
Wrapped packs discharge on the outfeed conveyor and can pass straight to a weigh-price-labeling machine for automatic weighing, printing and labeling.
Related solution
See it inside a complete line
This machine is part of configured processing lines. Review the solution pages for the full process flow.
Working Video
Project References
Projects built with this machine — country, capacity and configuration only.
Chili Flow-Pack Weighing and Labeling Line for a Canadian Packhouse
Chili · Canada · 1–1.5 t/h
Packing station / Packhouse
Chili Weighing and Labeling Machine for a Canadian Packhouse
Chili · Canada · 1–1.5 t/h
Packing station / Packhouse
Chili Film Wrapping and Labeling Line for a Canadian Packhouse
Chili · Canada · 1–1.5 t/h
Packing station / PackhouseFAQ
Do trays need to be pre-sorted by size?
No — trays of different dimensions can run on the same belt at the same time. The machine detects each tray's size independently and adjusts automatically; no values are set by hand.
Does it work without trays?
Yes — loose vegetables run on a chain infeed while tray products (fruit clamshells, meat trays) use a belt infeed. Choose the infeed that matches your product; wrapping quality is the same either way.
What are the size and weight limits?
Products from 120–350 mm long, 95–250 mm wide and 10–130 mm high (tray base up to 50 mm), weighing 50 g to 4.5 kg. The maxima cannot be combined simultaneously — we test with actual samples before confirming.
Can it connect to weighing and labeling?
Yes — the outfeed conveyor couples directly with a weigh-price-labeling machine, forming a wrapping → weighing → printing → labeling line with no manual handling.
