Garlic stem and root cutting machineCutting equipment

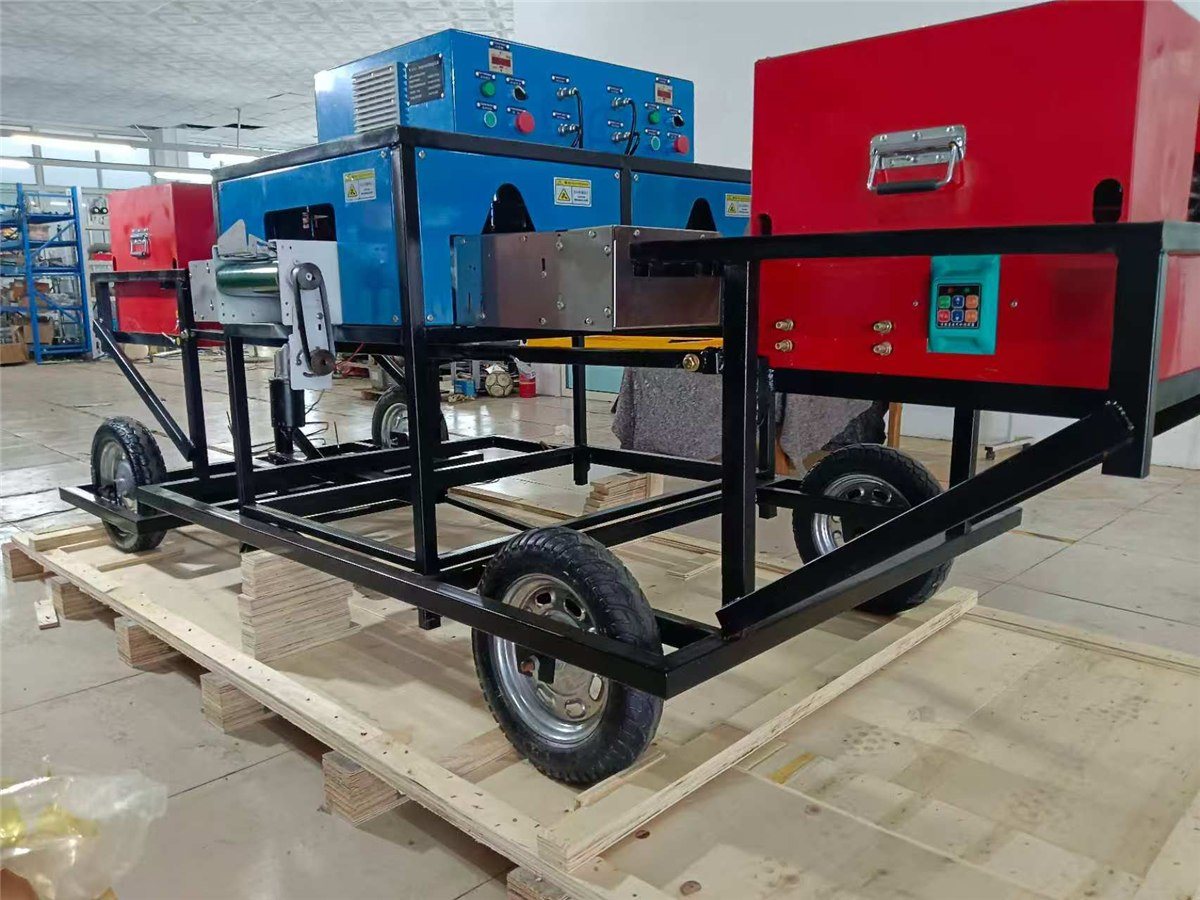

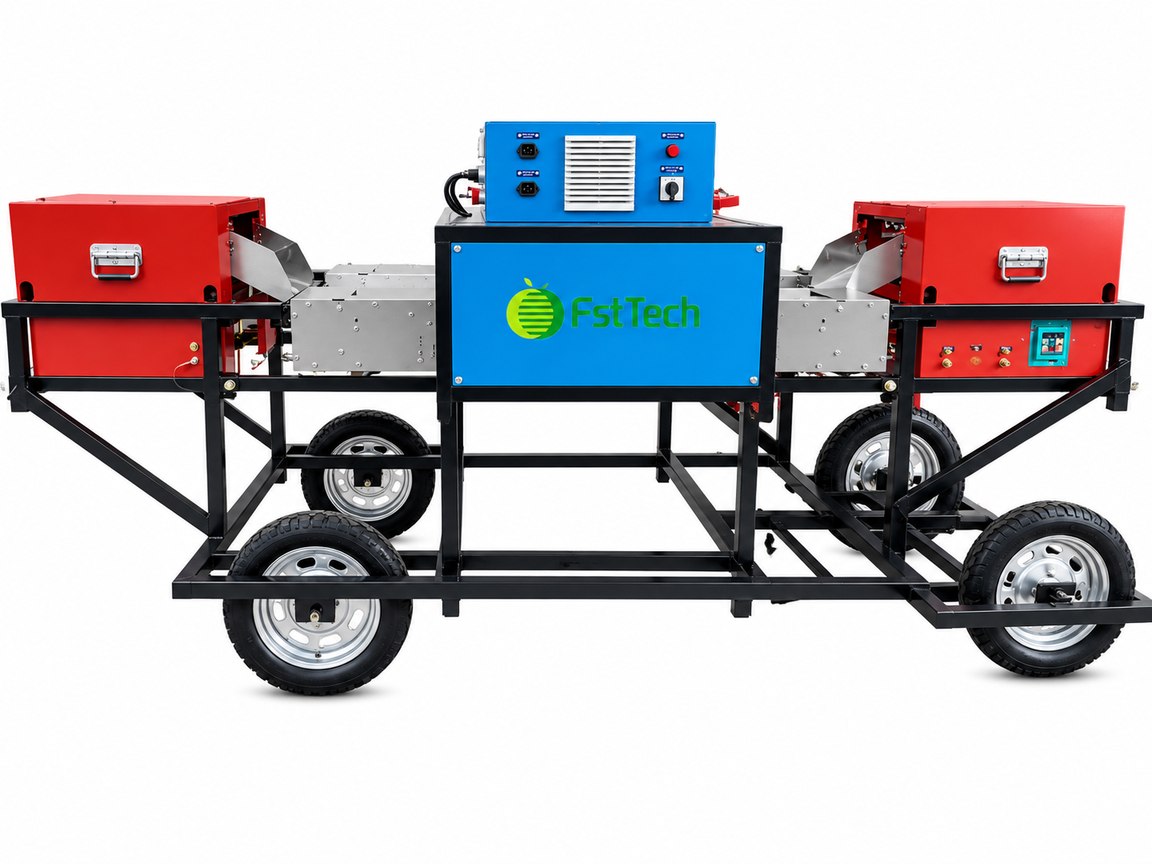

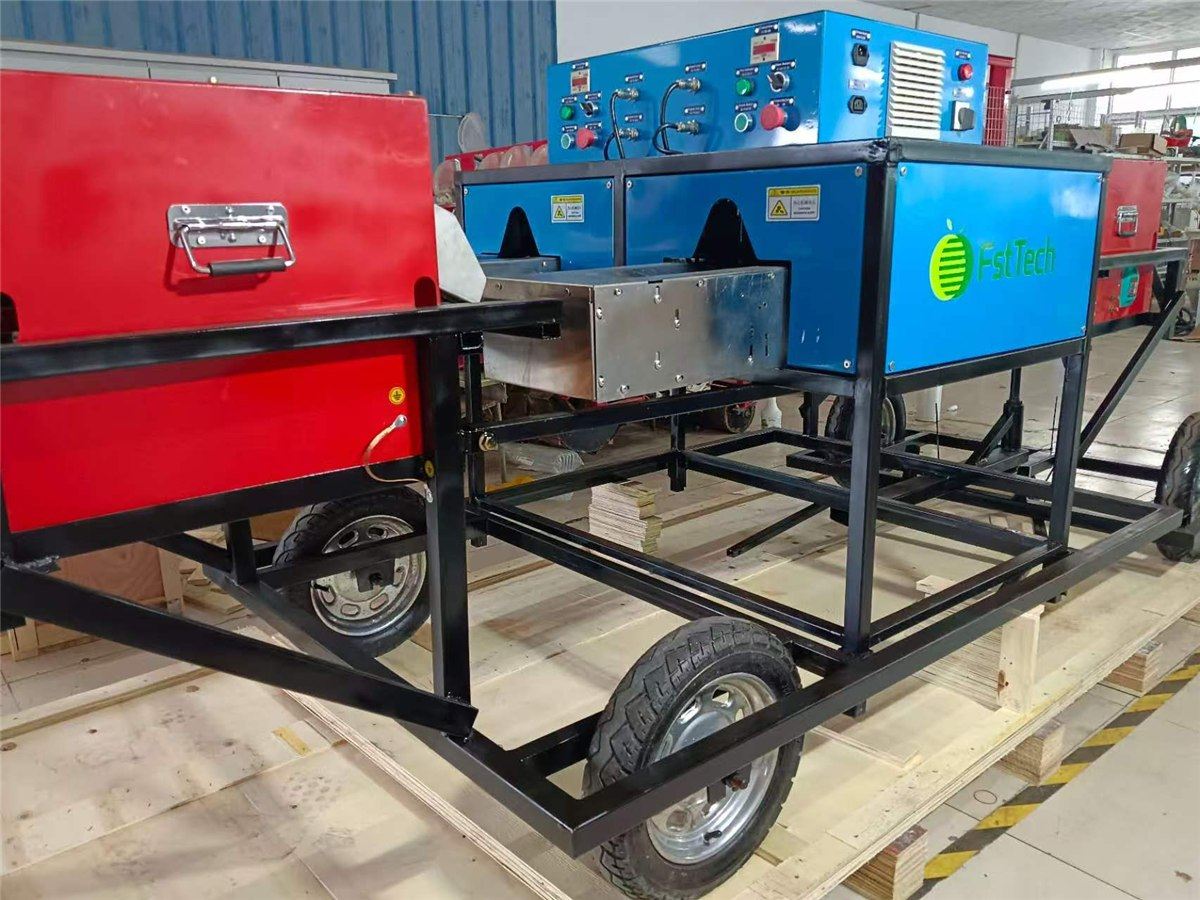

Garlic Stem and Root Cutting Machine
Dual-station garlic stem shearing and root cutting machine with automatic alignment — handles mixed 35–90 mm garlic without pre-sorting, 1.2–1.5 acres/day.
Applications
- Garlic field-side processing
- Garlic processing facilities
- Post-harvest garlic trimming
- Stem shearing and root cutting in one pass
Features
- No pre-sorting neededBuilt-in self-correction device handles mixed garlic sizes between 35–90 mm without pre-grading.
- Dual-station efficiencyDual-side stem shearing combined with automated root cutting maximises throughput.
- Adjustable blade depthRemaining stem length customisable between 20 mm and 50 mm.
- Field-readyHeavy-duty carbon steel frame with field wheels for on-site operation.
Technical Specifications
- Processing capacity
- 1.2–1.5 acres/day
- Garlic diameter
- 35–90 mm (customisable above 90 mm)
- Stem length
- 20–50 mm before root cutting
- Frame
- Carbon steel with field wheels
- Power
- 1 kW, 220V/380V adjustable
- Machine weight
- Approx. 700 kg
- Dimensions (L×W×H)
- 3,200 × 1,400 × 1,500 mm
- Pre-treatment
- Shake off excess soil before feeding
Working Process
Soil shaking
Shake off heavy dirt clumps from harvested garlic roots before feeding.
Stem trimming
Dual-side cutting bars shear stalks down to the 20–50 mm range.
Automated root cutting
Garlic is fed into the main inlet; the internal conveyor and alignment system automatically trims root whiskers.
Post-sorting
Processed garlic is graded according to retail or wholesale size criteria.
Working Video
FAQ
Does garlic need pre-sorting?
No — the automatic correction mechanism handles mixed sizes between 35 mm and 90 mm directly.
Can it cut raw stems from harvest?
Stalks must be pre-trimmed to 20–50 mm before entering the automatic root-cutting stage.
What affects cutting quality?
Low soil content on the bulbs and the 35–90 mm diameter range are key for clean cuts.
